TeraFlex JK: Alpine Long Arms and Long Arm Brackets) provide complete alignment adjustability and dependability for maximum performance on JK Wrangler/Unlimited models with 3-6 Inch Lifts. High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality.
CAD-engineered TeraFlex JK: Long Arm Brackets are designed for maximum strength. By streamlining the frame-end mounting points, we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance.

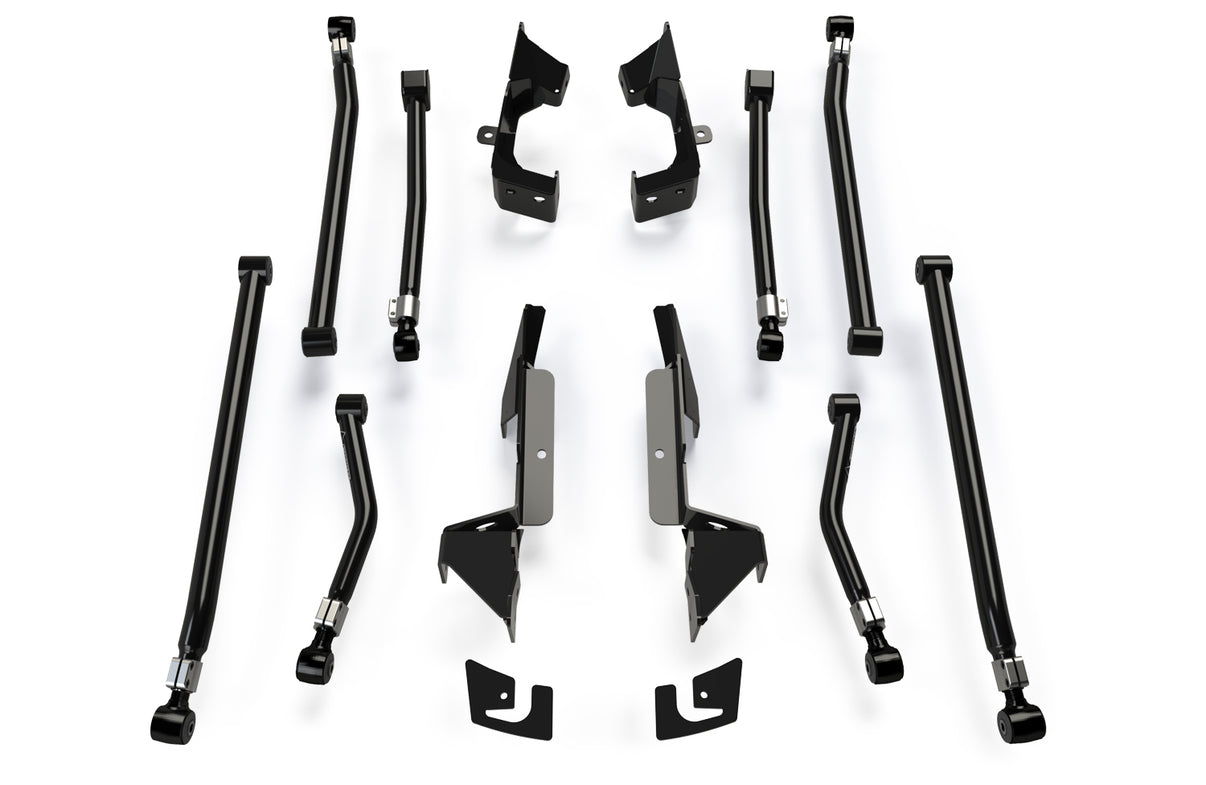

Can be added to any existing suspension lift. Includes:
Alpine Long Arm Kit - 8-Arm (# 1315000):
Arm Pair - Front Upper (# 1315520)
Arm Pair - Front Lower (# 1315500)
Arm Pair - Rear Upper (# 1315560)
Arm Pair - Rear Lower (# 1315540)
Long Arm Bracket Kit (# 1957000):
Brackets - Front
Brackets - Rear
Gussets - Rear
All necessary hardware
Fitment:
JK Wrangler (2-door)
JK Wrangler Unlimited (4-door)
Specs:
Lift Height: 3-6 Inch
Control Arm Specs:
JK: Alpine Long Arm Pair - Front Upper (# 1315520):
Tube Diameter & Wall: 42mm x 4mm
Factory Length: 18-3/4 Inch
Min. Length: 27-3/8 Inch
Max. Length: 28-7/8 Inch
Bolt - Axle: 12mm
Bolt - Frame: 14mm
Bushing - Axle: OEM
Bushing - Frame: 611013
JK: Alpine Long Arm Pair - Front Lower (# 1315500):
Tube Diameter & Wall: 50mm x 5mm
Factory Length: 22-5/8 Inch
Min. Length: 33-3/4 Inch
Max. Length: 35-1/4 Inch
Bolt - Both: 14mm
Bushing - Both: 611011
JK: Alpine Long Arm Pair - Rear Upper (# 1315560):
Tube Diameter & Wall: 42mm x 4mm
Factory Length: 17-7/16 Inch
Min. Length: 20 Inch
Max. Length: 21-1/2 Inch
Bolt - Both: 14mm
Bushing - Both: 611012
JK: Alpine Long Arm Pair - Rear Lower (# 1315540):
