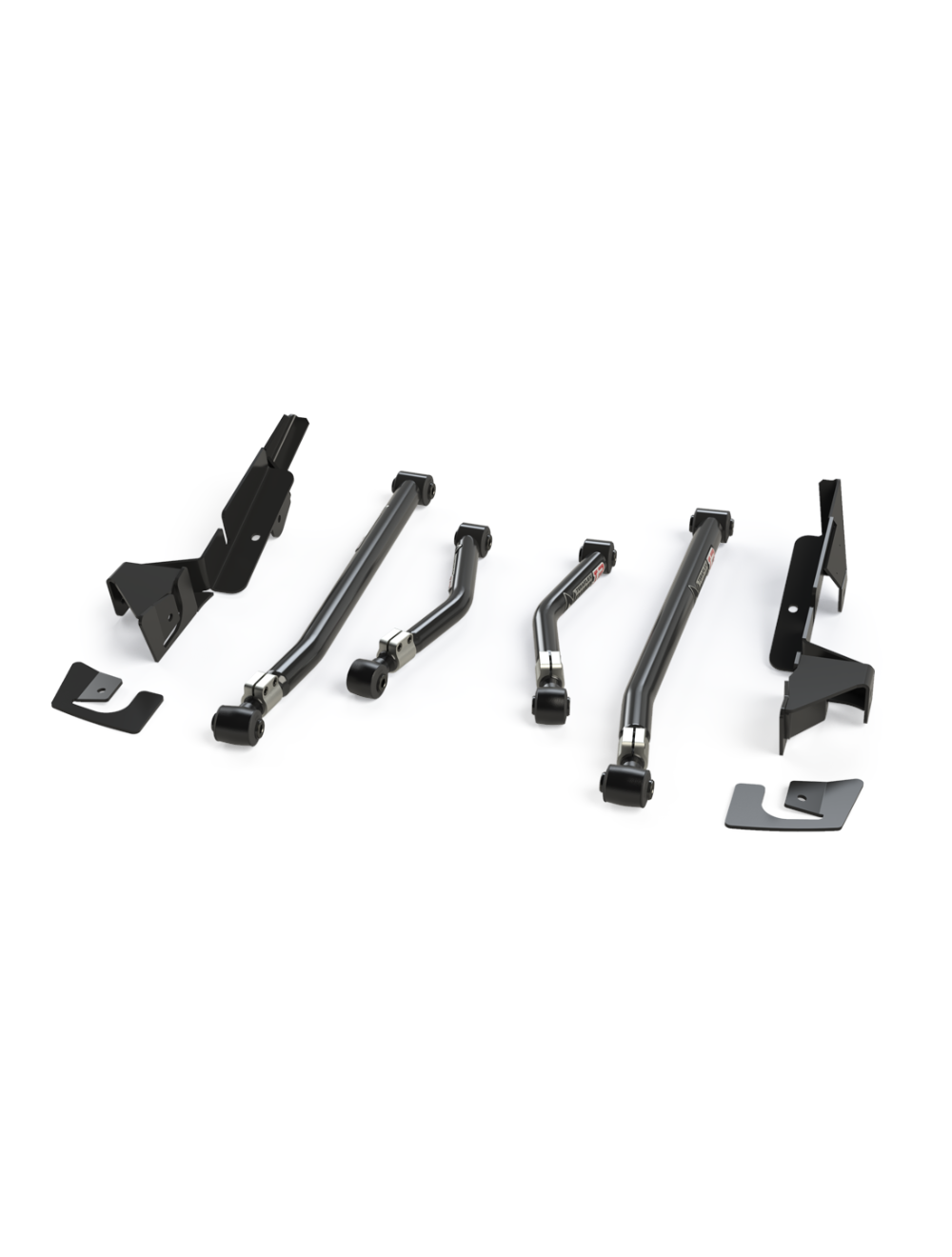

TeraFlex JK: Alpine IR Long Control Arms and Alpine Long Arm Brackets provide complete alignment adjustability and dependability for maximum performance on JK Wrangler/Unlimited models with 3-6 Inch Lifts. Can be added to an existing suspension lift. Our innovative IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping.
These maintenance-free bushings improve on- and off-road ride quality and performance. On higher lifts TeraFlex JK: Alpine Long Arm Brackets (Included) reposition the frame-end control arm mounting points to restore near factory orientation to reduce bushing stress during droop and shock load transferred through the control arms.
CAD-engineered Alpine Long Arm Brackets are designed for maximum strength. By streamlining the frame-end mounting points we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance.
Fitment:
JK Wrangler (2-door)
JK Wrangler Unlimited (4-door)3-6 Inch Lift
Long Control Arm
Specs:
JK: Alpine IR Long Control Arm Kit - Rear Upper (# 1315590):
Tube Diameter & Wall: 1-5/8 Inch X 0.157 Inch (42mm X 4mm)
Factory Length = 17-7/16 Inch
Min. Length = 20 Inch
Max. Length = 21-1/2 Inch
Both Ends = 9/16 Inch (14mm) Bolt
Thread = 1-1/4 Inch-12 UNF
JK: Alpine IR Long Control Arm Kit - Rear Lower (# 1315600):
Tube Diameter & Wall = 2 Inch X 0.197 Inch (50mm X 5mm)
