TeraFlex JK: Alpine IR Long Arms and Long Arm Brackets (Not Included) provide complete alignment adjustability and dependability for maximum performance on JK Wrangler/Unlimited models with 3-6 Inch Lifts.
Our innovative, maintenance-free IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping to improve on- and off-road ride quality and performance. MUST be used with Long Arm Bracket Kit (# 1957000) - Not Included. Can be added to any existing suspension lift. Includes:

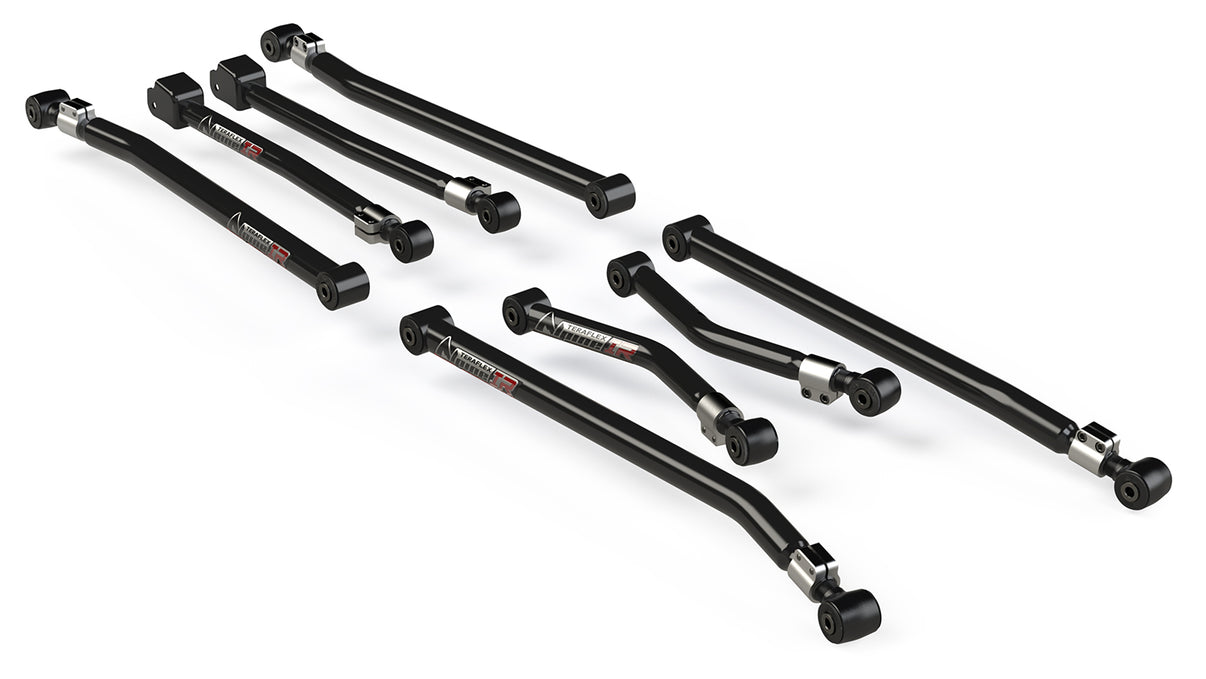

Alpine IR Long Arm Pairs:
Arm Pair - Front Upper (# 1315570)
Arm Pair - Front Lower (# 1315580)
Arm Pair - Rear Upper (# 1315590)
Arm Pair - Rear Lower (# 1315600)
Fitment:
JK Wrangler (2-door)
JK Wrangler Unlimited (4-door)
Specs:
Lift Height: 3-6 Inch
Control Arm Specs:
JK: Alpine IR Long Arm Pair - Front Upper (# 1315570):
Tube Diameter & Wall: 42mm x 4mm
Factory Length: 18-3/4 Inch
Min. Length: 27-3/8 Inch
Max. Length: 28-7/8 Inch
Bolt - Axle: 12mm
Bolt - Frame: 14mm
IR Bushing - Axle: OEM
IR Bushing - Frame: 611019
JK: Alpine IR Long Arm Pair - Front Lower (# 1315580):
Tube Diameter & Wall: 50mm x 5mm
Factory Length: 22-5/8 Inch
Min. Length: 33-3/4 Inch
Max. Length: 35-1/4 Inch
Bolt - Both: 14mm
IR Bushing - Both: 611015
JK: Alpine IR Long Arm Pair - Rear Upper (# 1315590):
Tube Diameter & Wall: 42mm x 4mm
Factory Length: 17-7/16 Inch
Min. Length: 20 Inch
Max. Length: 21-1/2 Inch
Bolt - Both: 14mm
IR Bushing - Both: 611016
JK: Alpine IR Long Arm Pair - Rear Lower (# 1315600):
