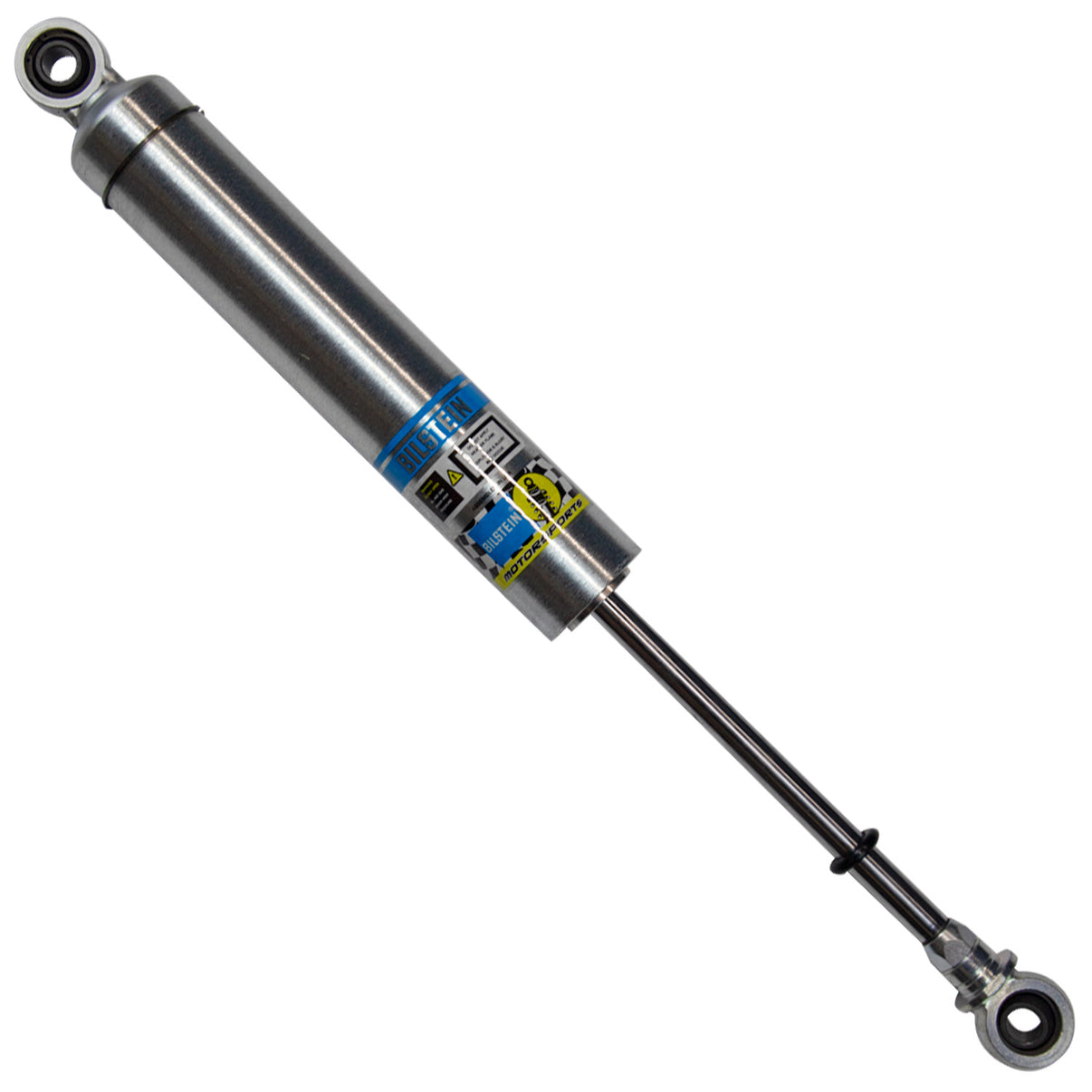

Bilstein Shock Absorbers

Bilstein SL Series shock absorbers feature a 46mm piston, steel construction, and a smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths, valve settings and can be converted to a coilover design (kit sold separately). SL Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

• Plated steel body for durability and superior heat dissipation
• 46mm piston design for maximum damping control
• Standard 1/2” graphite heims

Vehicle Specific

• No Applications

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860904030
• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body (Non-coilover)
• Body Material: Steel
• Boot Included: No
• Collapsed Length (IN): 13.15
• Collapsed Length (MM): 334.0
• Compression @ 10"/sec: 75
• Extended Length (IN): 20.08
• Extended Length (MM): 510.0
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: 1/2in Heim
• PartType: Shocks / Struts
• Piston Diameter: 46mm
• Piston Type: Linear
• Rebound @ 10"/sec: 175
• Segment: Motorsports
• Series: SL Series
• Shaft Diameter: 14mm
• Spring Seat Included: No
• Stroke/Travel Length (IN): 6.93
• Stroke/Travel Length (mm): 176.0
• Upper Mount Type: 1/2in Heim

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 22.4500 x 2.9500 x 2.9500 inches
• Weight: 3.8600 POUNDS
