Bilstein Shock Absorbers

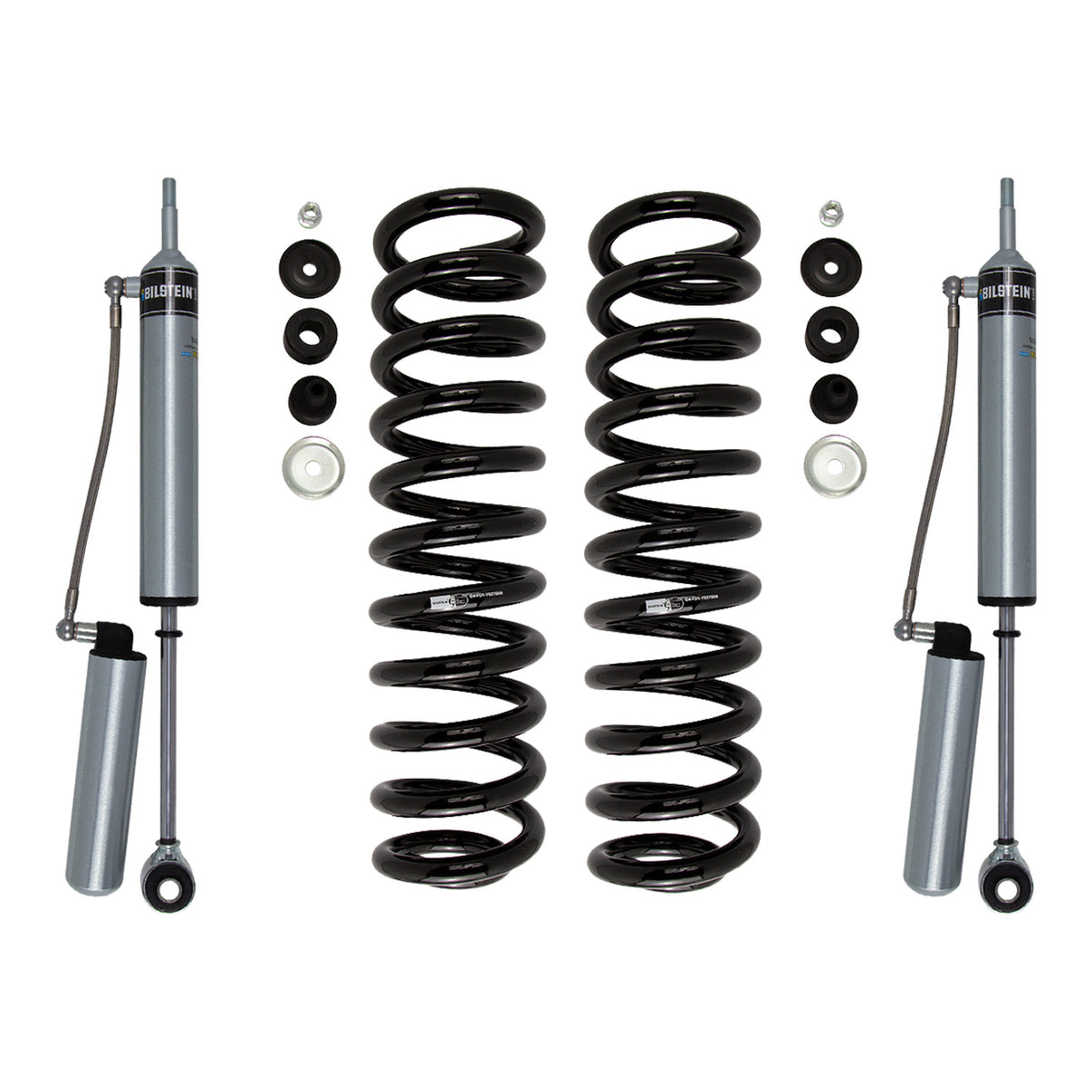

Bilstein B8 5162 suspension kit is a high performance leveling kit which provides more ground clearance, allows for larger tires, and increases wheel travel. The Bilstein B8 5162 suspension kit is for front applications and consists of (2) B8 5160 shock absorbers combined with (2) matched coil springs. This simple yet effective kit will bolt into the factory locations with no modifications. The Bilstein B8 5162 suspension kit provides a smooth and stable ride both on and off-road.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
• Remote reservoir increases shock oil capacity for greater heat dissipation

Vehicle Specific

• Ford F-250 Super Duty 2005-2025, F-350 Super Duty 2005-2025

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860820958
• Adjustable Damping: Non-Adjustable
• Body Design: 46mm ID Smooth Body (Non-Coilover)
• Boot Included: No
• Finish: Zinc Plated
• Internal Design: Monotube
• Optional Reservoir Clamp: 11-176015
• PartType: Suspension Kit
• Reservoir: Yes
• Segment: Light Truck
• Series: B8 5162
• Shaft Diameter: 14mm
• Spring Seat Included: No

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 22.2500 x 27.3800 x 7.0000 inches
• Weight: 76.2400 POUNDS
