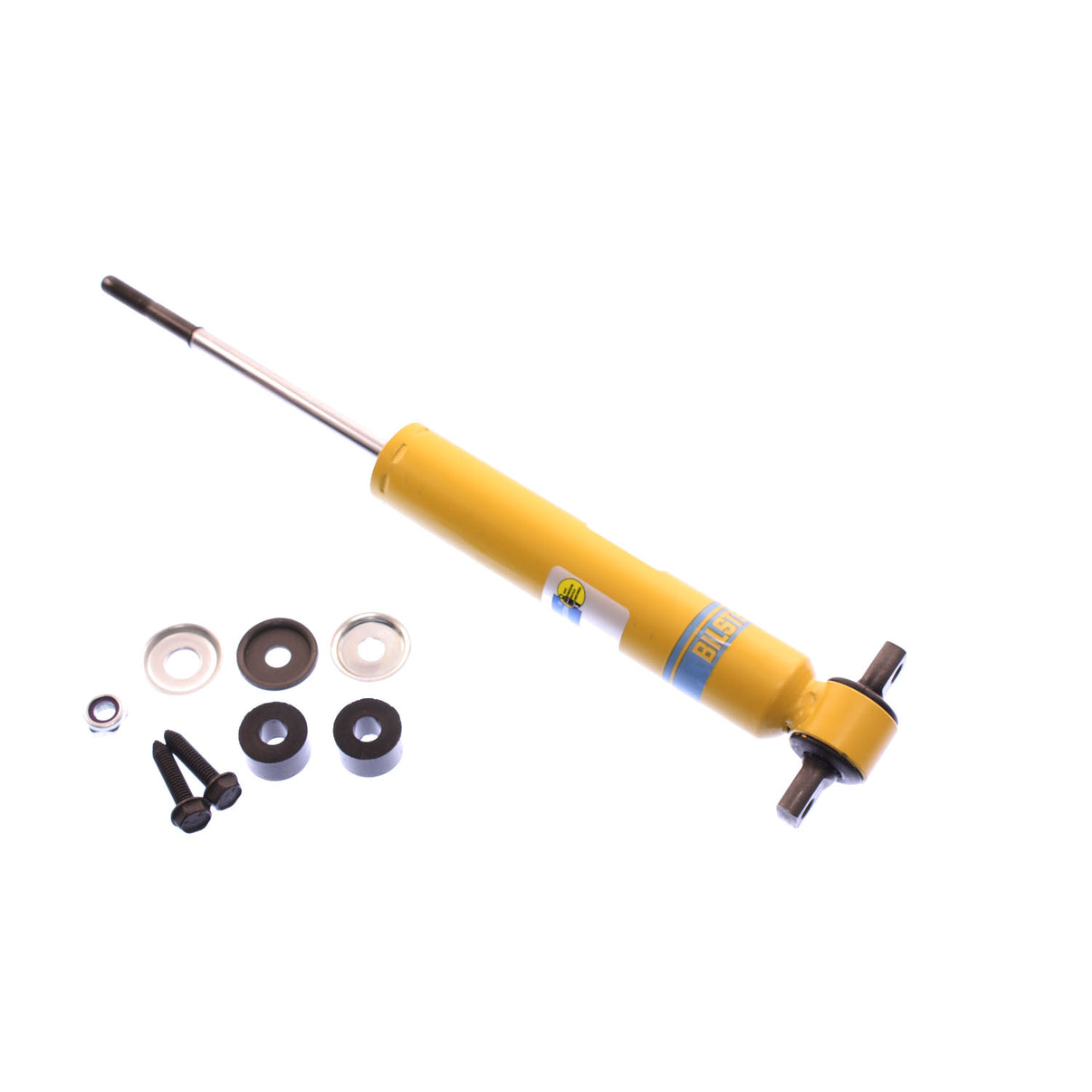

Bilstein Shock Absorbers

Bilstein AK Series shock absorbers are designed for motorsports applications that require the use of the OE mounting components. Each shock absorber features a monotube design with steel spring valve discs for consistent, fade free performance and superior durability. AK Series shock absorbers are ideal for racers who demand reliable performance that also meets their sanctioning body's mounting requirements.

• Monotube design ensures consistent, fade-free performance in all conditions
• Direct fit (OE) mounting design
• Race-winning valvings for optimum weight transfer, feel, and grip in various track conditions

Vehicle Specific

• Buick Century 1973-1981, Regal 1975-1987, Cadillac Seville 1976-1979, Chevrolet Chevelle 1973, El Camino 1973-1987, Malibu 1975-1983, Monte Carlo 1973-1988, Nova 1973-1974, Dodge D50 1979-1982, Ram 50 1983-1991, GMC Caballero 1978-1986, Sp

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860589398
• Adjustable Damping: Non-Adjustable
• Body Design: Stock Mount Smooth Body
• Body Material: Steel
• Boot Included: No
• Collapsed Length (IN): 8.73
• Collapsed Length (MM): 221.8
• Compression @0.26m/s: 975
• Compression @0.52m/s: 1415
• Extended Length (IN): 13.46
• Extended Length (MM): 342.0
• Finish: Yellow Paint
• Internal Design: Monotube
• Lower Mount Type: Bar Pin
• PartType: Shocks / Struts
• Piston Diameter: 36mm
• Piston Type: Linear
• Rebound @0.26m/s: 1595
• Rebound @0.52m/s: 2610
• Segment: Motorsports
• Series: AK Series
• Shaft Diameter: 11mm
• Spring Seat Included: No
• Stroke/Travel Length (IN): 4.73
• Stroke/Travel Length (mm): 120.1
• Upper Mount Type: Stem

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 22.4500 x 2.9500 x 2.9500 inches
• Weight: 3.0900 POUNDS
