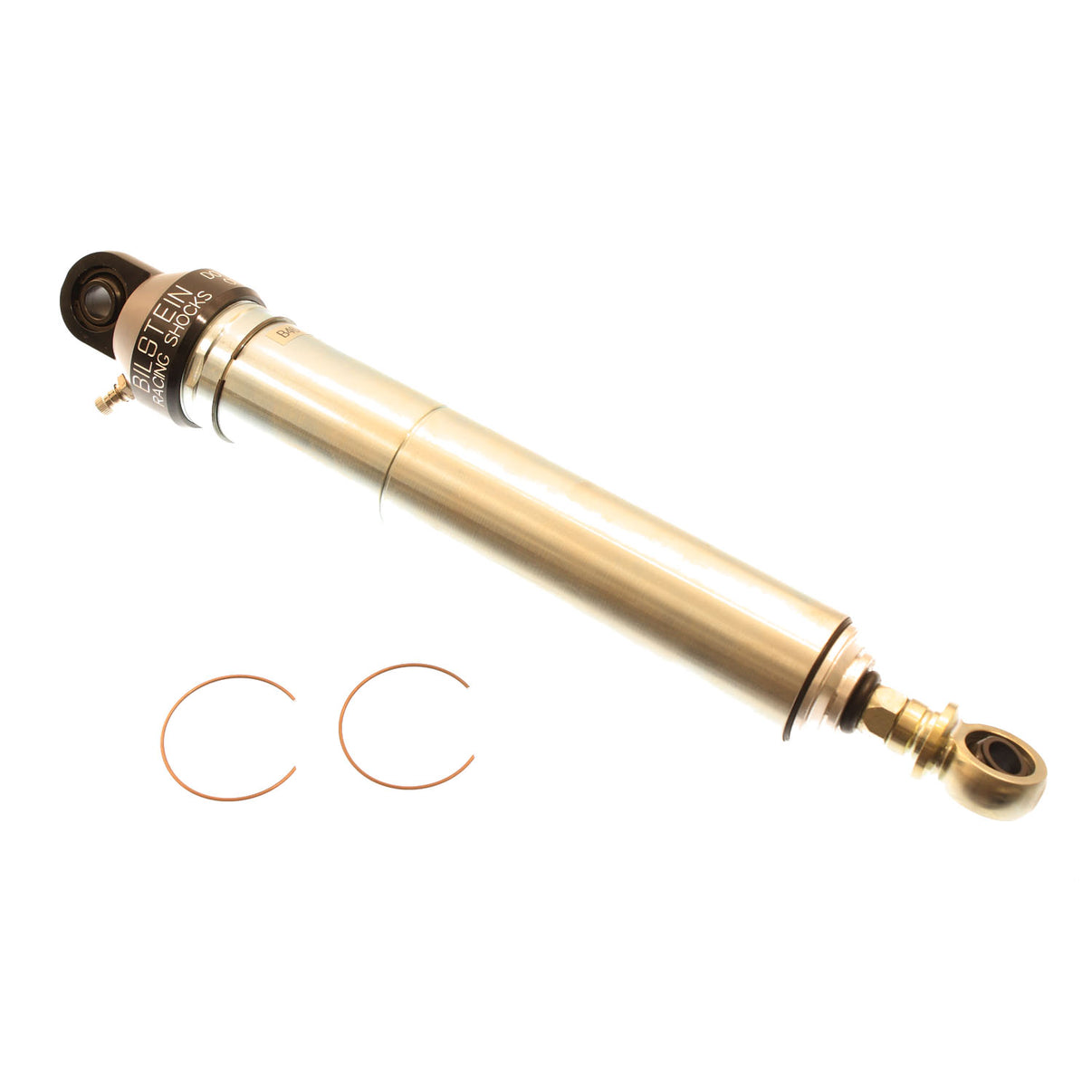

Bilstein Shock Absorbers

Bilstein SN Series shock absorbers feature a 46mm piston, steel construction, and smooth body with a billet aluminum cap designed for motorsports applications. These shock absorbers are rebuildable for easy repair and valve setting changes, and can be converted to a coilover (kit sold separately). SN Series shock absorbers are available in multiple lengths and are ideal for racers whose sanctioning rules only allow steel body rebuildable shock absorbers with an aluminum cap.

• 46mm extruded steel body with ultra smooth ID finish provides superior fitment tolerances with the large 46mm working piston design for precise fluid control
• 14mm case hardened stainless steel chrome shaft that provides low seal drag/ friction and resists stone chips and dings
• Standard with linear and digressive pistons, with optional upgrades available

Attributes:

• Brand Name: Bilstein
• GTIN: 00790832512696
• Boot Included: No
• Collapsed Length (IN): 11.48
• Collapsed Length (MM): 291.6
• Compression: Digressive
• Extended Length (IN): 16.32
• Extended Length (MM): 414.5
• Finish: Nickel Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 12.7mm
• PartType: Shocks / Struts
• Rebound: Digressive
• Segment: Motorsports
• Series: SN Series
• Spring Seat Included: No
• Upper Mount Type: Eye 12.7mm

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Discontinued

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.0000 x 2.7500 x 2.5000 inches
• Weight: 3.7800 POUNDS
