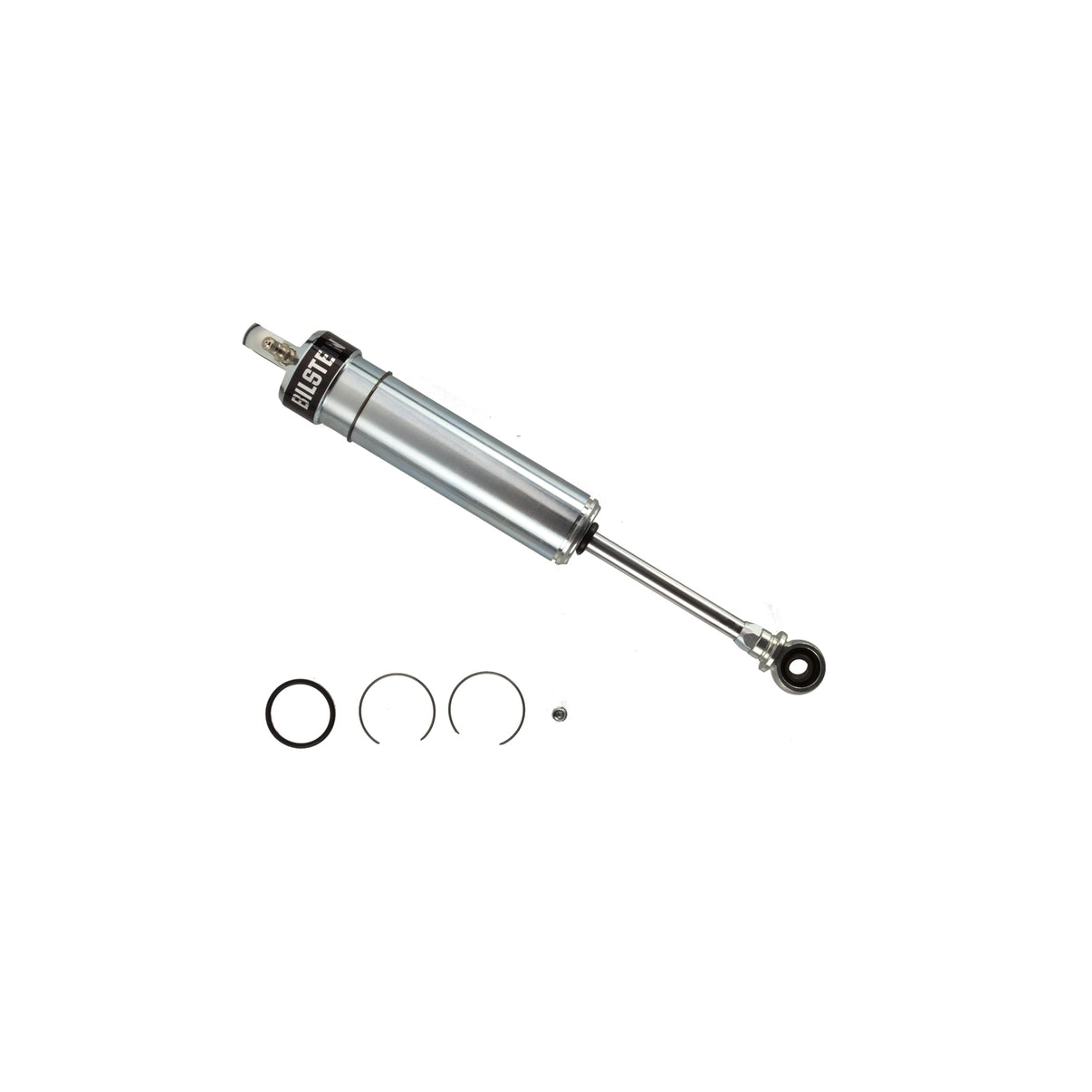

Bilstein Shock Absorbers

Bilstein SNS2 Series shock absorbers feature a steel, smooth body design utilizing the 46mm monotube technology (piston and piston band sold separately) designed for motorsports applications. These shock absorbers feature a steel body cap and a Schrader valve or fill plug. They are upgradeable to adjustable shafts and can be converted to a coilover (kit sold separately). SNS2 Series shock absorbers are ideal for racers whose sanctioning rules require an all steel construction with rebuild capability.

• Plated steel body for durability and superior heat dissipation
• 46mm piston design for maximum damping control
• Standard 1/2” graphite heims

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860779966
• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body Screw Top (Non-coilover)
• Body Material: Steel
• Boot Included: No
• Collapsed Length (IN): 11.00
• Collapsed Length (MM): 279.4
• Extended Length (IN): 15.82
• Extended Length (MM): 401.9
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: 1/2in Heim
• PartType: Shocks / Struts
• Piston Diameter: 46mm
• Piston Type: Digressive
• Segment: Motorsports
• Series: SNS2 Series
• Shaft Diameter: 14mm
• Spring Hardware: B4-BOA-0000117
• Spring Seat Included: No
• Stroke/Travel Length (IN): 4.82
• Stroke/Travel Length (mm): 122.4
• Upper Mount Type: 1/2in Heim
• Valving Identifier: Digressive Dry Kit (no valving)

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Superseded

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 22.4500 x 2.9500 x 2.9500 inches
• Weight: 3.3500 POUNDS
