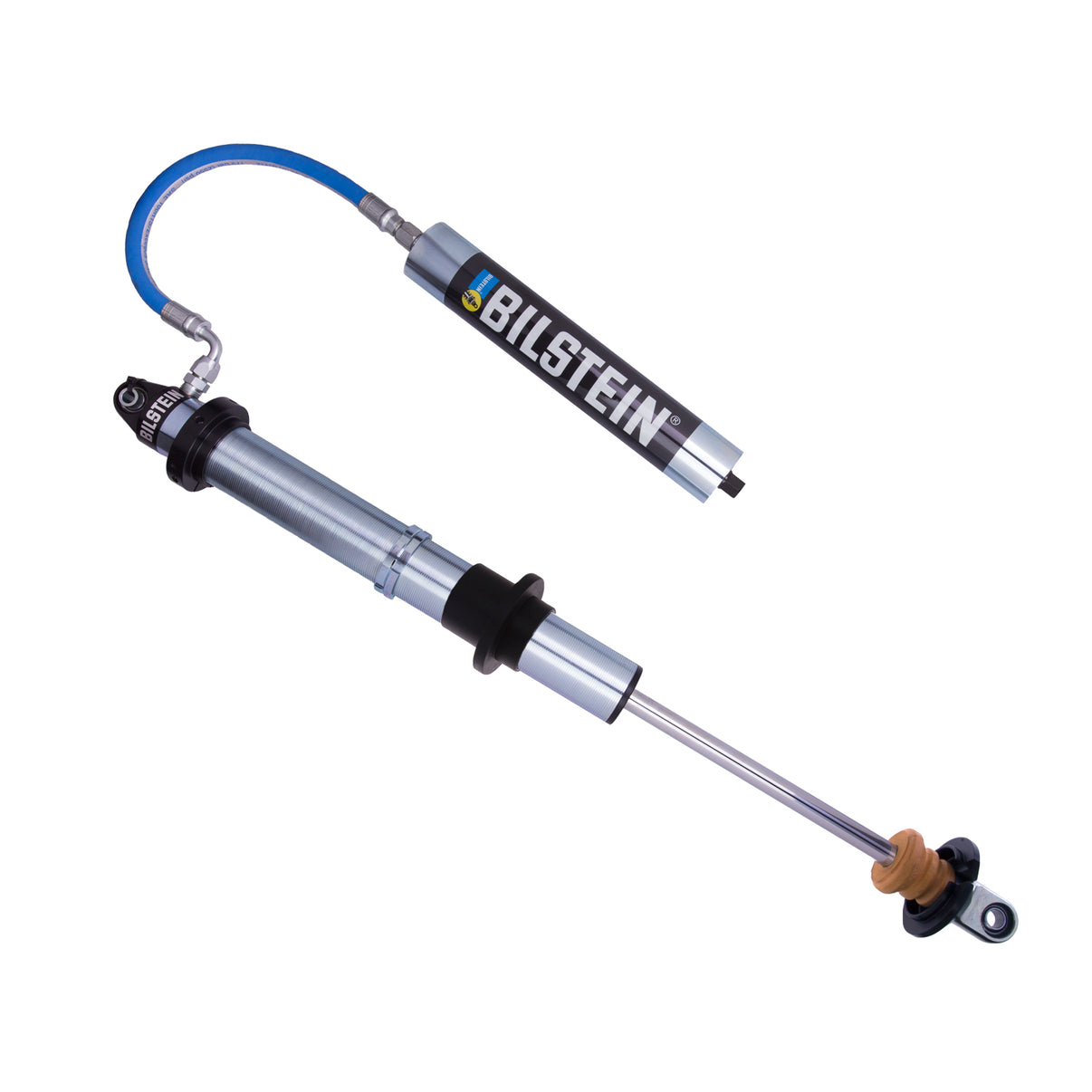

Bilstein Shock Absorbers

Bilstein M 9200 (Coilover) is designed specifically for professional off-road competition use which requires custom lengths and valve settings. M 9200 (Coilover) features a fully adjustable dual rate spring hardware system that will compliment a wide array of industry standard coilover springs. These coilovers are equipped with a 60mm ID remote reservoir and are owner rebuildable and revalvable. M 9200 (Coilover) offers the ability to efficiently adjust spring rates to achieve the optimum performance.

• Available in 46mm and 60mm monotubes
• Threaded body with dual-rate coilover hardware
• Multiple stroke lengths available ranging from 8" to 16"

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860752877
• Body Design: Threaded Body (Coilover)
• Boot Included: N/A
• Collapsed Length (IN): 24.50
• Collapsed Length (MM): 622.3
• Compression @0.52m/s: 1000
• Extended Length (IN): 38.50
• Extended Length (MM): 977.9
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye .5x1.5in
• Mount Type: Eye-to-Eye
• Optional Reservoir Clamp: N/A
• PartType: Shocks / Struts
• Piston Diameter: 60mm
• Rebound @0.52m/s: 3550
• Reservoir: Yes
• Segment: Motorsports
• Series: M 9200 (Coilover)
• Shaft Diameter (mm): 22.0
• Spring Seat Included: No
• Stroke/Travel Length (IN): 14.00
• Stroke/Travel Length (mm): 355.6
• Upper Mount Type: Eye .5x1.5in

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Discontinued

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 36.0000 x 7.5000 x 4.5000 inches
• Weight: 25.6000 POUNDS
