Bilstein Shock Absorbers

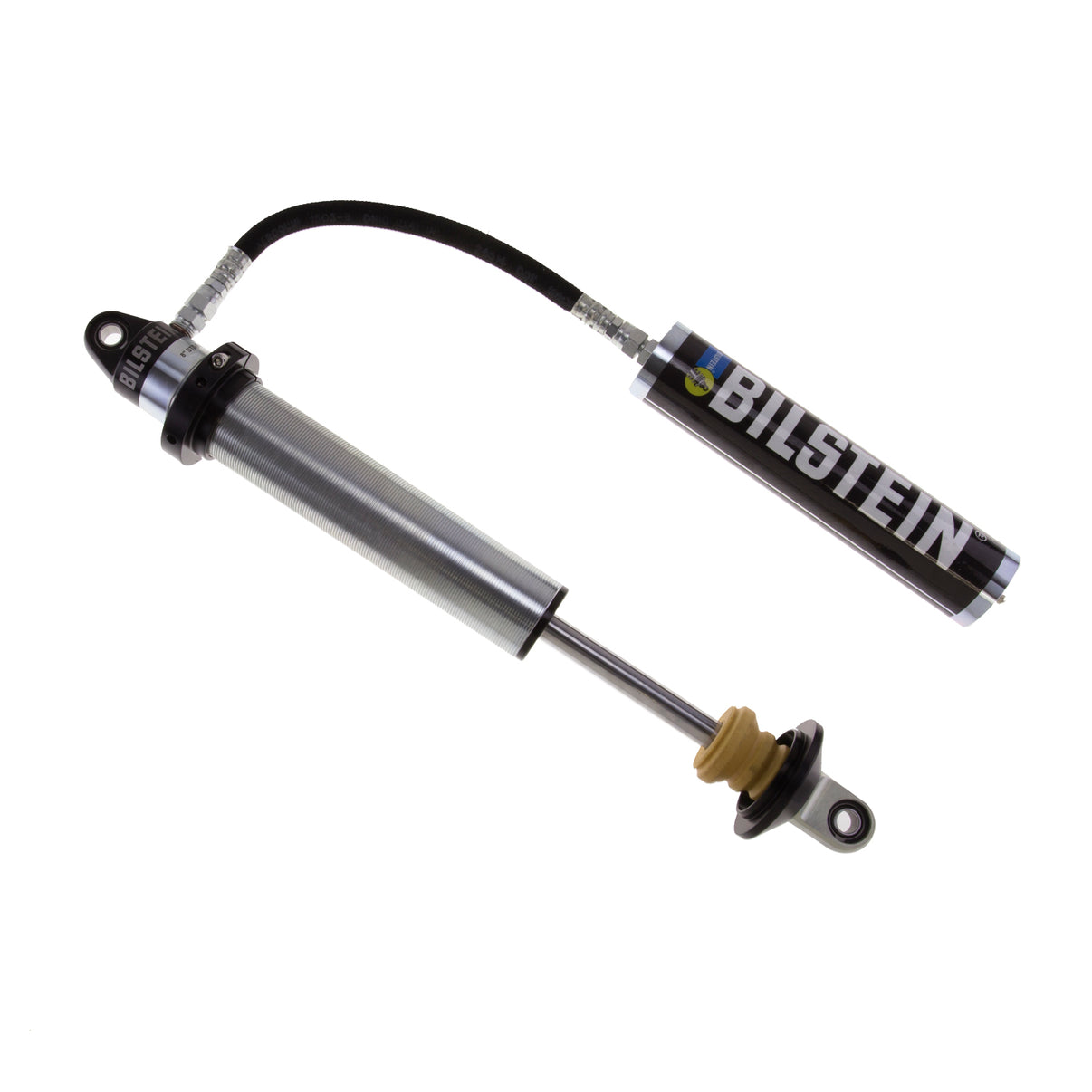

Bilstein B8 8125 coilovers are engineered for the serious off-road enthusiast, available in both 46mm (2 inch) and 60mm (2.65 inch) sizes. Designed for use with dual-rate springs and available in a wide range of travel lengths, these performance coilovers are perfect for custom coilover suspension applications. Equipped with a competition designed, 3-stage seal pack, these coilovers withstand the harshest off-road environments. All B8 8125 coilovers include a 22mm hard chromed, case hardened piston rod which provides exceptional tensile strength and resistance to sand blasting and rock chipping. Incorporated remote reservoir combined with a high-temp hose provides consistent fade free performance under conditions of intense heat. The zinc coated threaded body allows for quick ride height adjustments and spring changes. Bilstein B8 8125 coilovers are completely owner rebuildable with replacement parts available from Bilstein. All components are machined to precise tolerances and made in the USA to insure high quality.

• Available in 46mm and 60mm monotubes for consistent, fade-free performance
• Threaded body with dual-rate coilover hardware
• Remote reservoir for greater resistance to heat and increased travel length

Vehicle Specific

• No Applications

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860754741
• Body Design: Threaded Body Screw Top (Coilover)
• Collapsed Length (IN): 17.50
• Collapsed Length (MM): 444.5
• Compression @0.52m/s: 1100
• Extended Length (IN): 25.50
• Extended Length (MM): 647.7
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye .5x1.5in
• Mount Type: Eye-to-Eye
• Optional Reservoir Clamp: B4-KT1-Z292A00
• PartType: Shocks / Struts
• Piston Diameter: 60mm
• Rebound @0.52m/s: 3700
• Reservoir: Yes
• Segment: Motorsports
• Series: B8 8125
• Shaft Diameter (mm): 22.0
• Spring Seat Included: Yes
• Stroke/Travel Length (IN): 8.00
• Stroke/Travel Length (mm): 203.2
• Upper Mount Type: Eye .5x1.5in

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 36.0000 x 7.5000 x 4.5000 inches
• Weight: 17.5000 POUNDS
