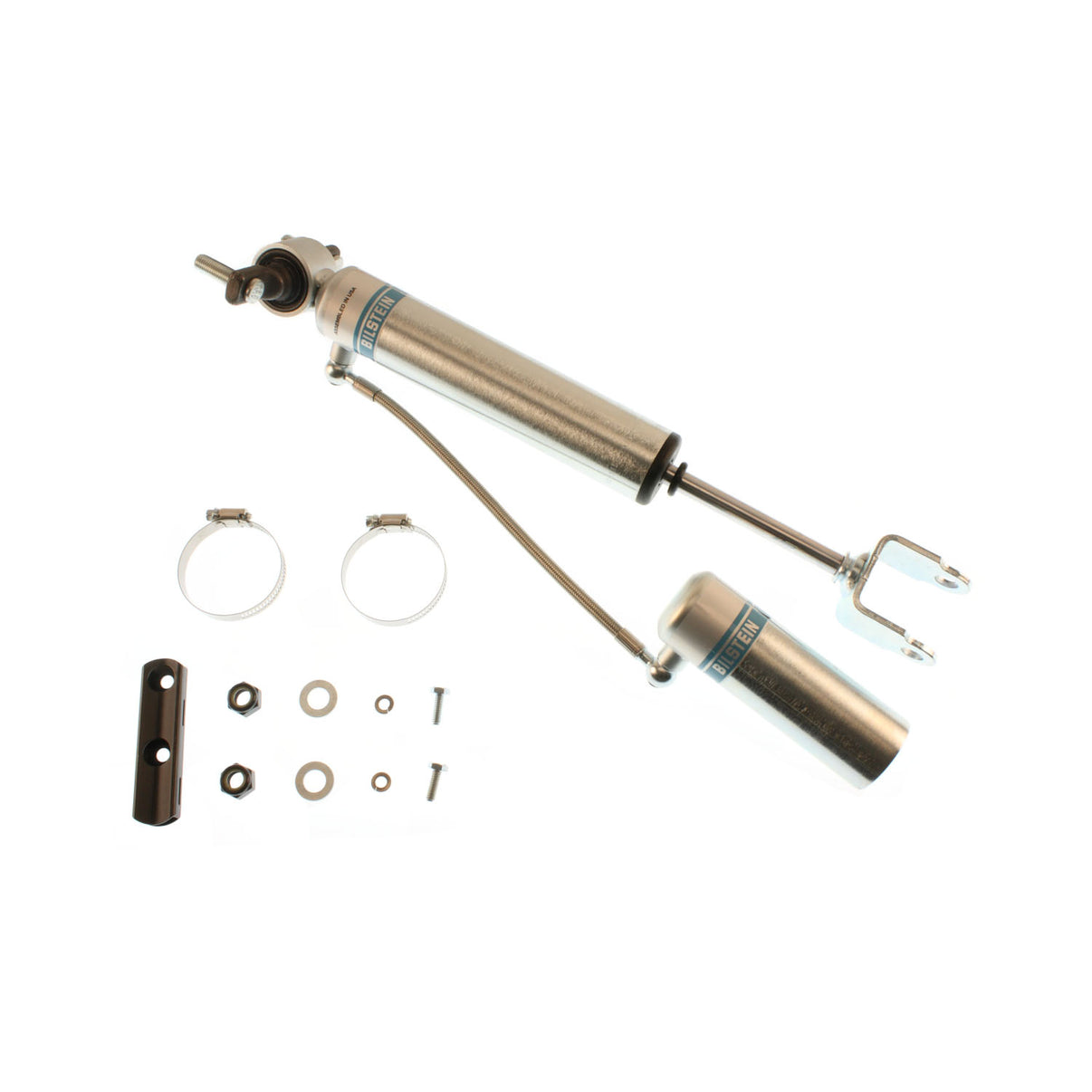

Bilstein Shock Absorbers

Bilstein B8 5160 remote reservoir shock absorbers are designed as a direct fit solution for lifted trucks and SUVs. The remote reservoir will offer increased cooling capacity and wheel travel to optimize overall performance compared to a traditional shock absorber. These shock absorbers feature a monotube design for consistent fade free performance and utilize velocity sensitive digressive valve settings which are tuned for each specific application. Each shock absorber is fitted with a unique 360 degree swivel banjo hose fitting and an attractive billet reservoir mount where applicable providing a clean, low profile installation. B8 5160 remote reservoir shock absorbers will increase overall durability of your vehicle allowing you to conquer the harshest of off-road environments.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Self-adjusting deflective disc valving reacts immediately to surface changes enabling maximum vehicle control
• Remote reservoir increases shock oil capacity for greater heat dissipation

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860669939
• Boot Included: No
• Collapsed Length (IN): 13.90
• Collapsed Length (MM): 353.0
• Extended Length (IN): 18.64
• Extended Length (MM): 473.5
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Clevis
• Optional Reservoir Clamp: 11-176015
• PartType: Shocks / Struts
• Reservoir: Yes
• Segment: Light Truck
• Series: B8 5160
• Shaft Diameter: 14mm
• Spring Seat Included: No
• Upper Mount Type: Bar Pin

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Superseded

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 4.1500 x 4.1500 inches
• Weight: 7.2500 POUNDS
