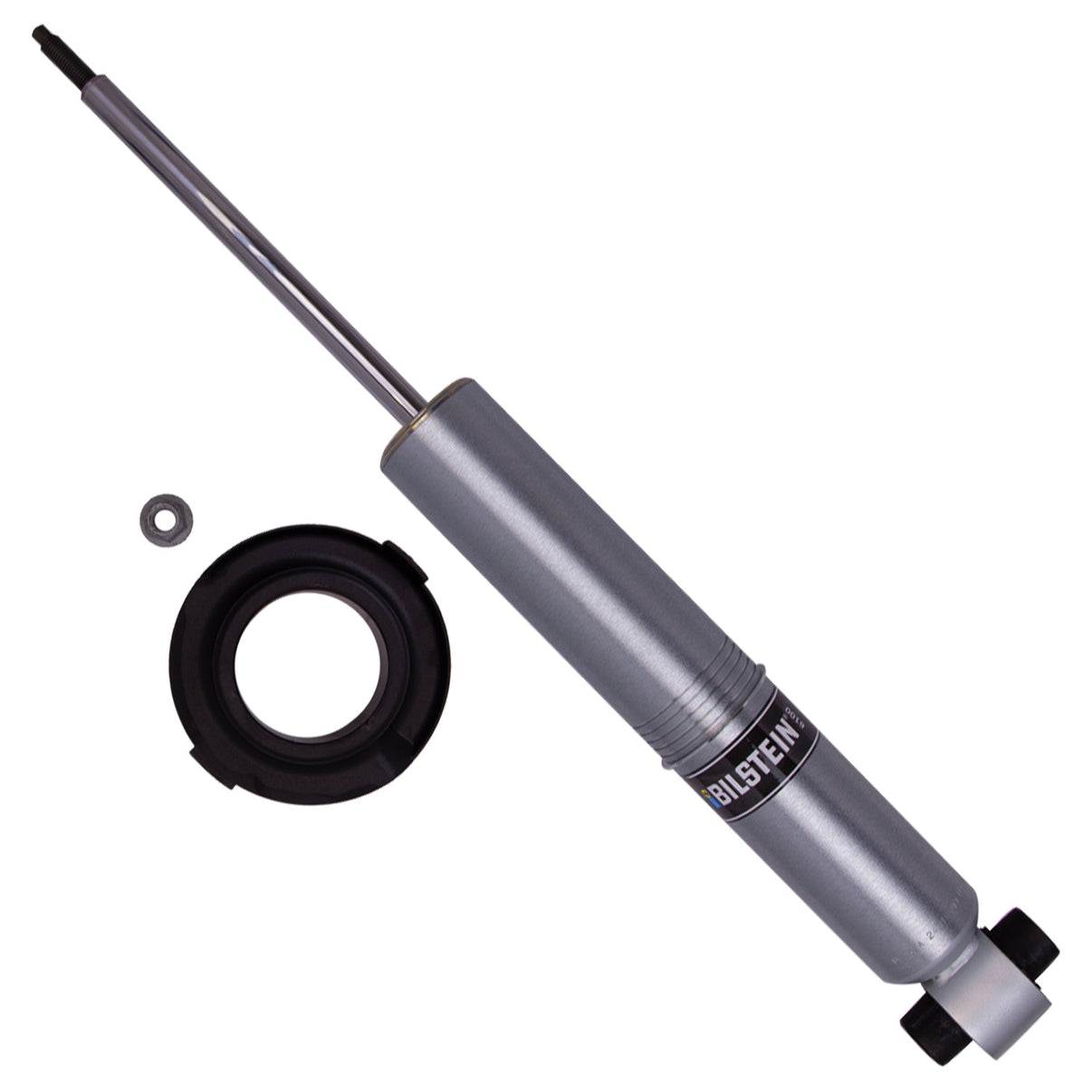

Bilstein Shock Absorbers

Bilstein B8 6100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV's with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing an adjustable ride height range of 0-3 inches (depending on application). The B8 6100 (Ride Height Adjustable) utilizes a large 2.65 OD body and 60mm digressive piston. This will provide a smoother ride while offering more control over rough terrain. The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation, making them perfect for vehicles subjected to rugged roads and harsh conditions.

• Large 60mm body for increased oil capacity, cooling, and long-term durability
• 60mm digressive piston improves ride comfort and control over rough terrain
• Vehicle specific tuning

Vehicle Specific

• Ford Bronco 2021-2025

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860887531
• Adjustable Damping: Non-Adjustable
• Body Design: Snap Ring Grooved Body (Coilover)
• Boot Included: No
• Collapsed Length (IN): 17.11
• Collapsed Length (MM): 434.6
• Extended Length (IN): 25.56
• Extended Length (MM): 649.3
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 20.2mm
• PartType: Shocks / Struts
• Piston Diameter: 60mm
• Reservoir: No
• Segment: Light Truck
• Series: B8 6100 (Ride Height Adjustable)
• Shaft Diameter: 18mm
• Spring Seat Included: Yes
• Stroke/Travel Length (IN): 4.15
• Stroke/Travel Length (mm): 105.4
• Upper Mount Type: Stem

Extended Information:

• Country of Origin: US
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 4.1500 x 4.1500 inches
• Weight: 11.1000 POUNDS
