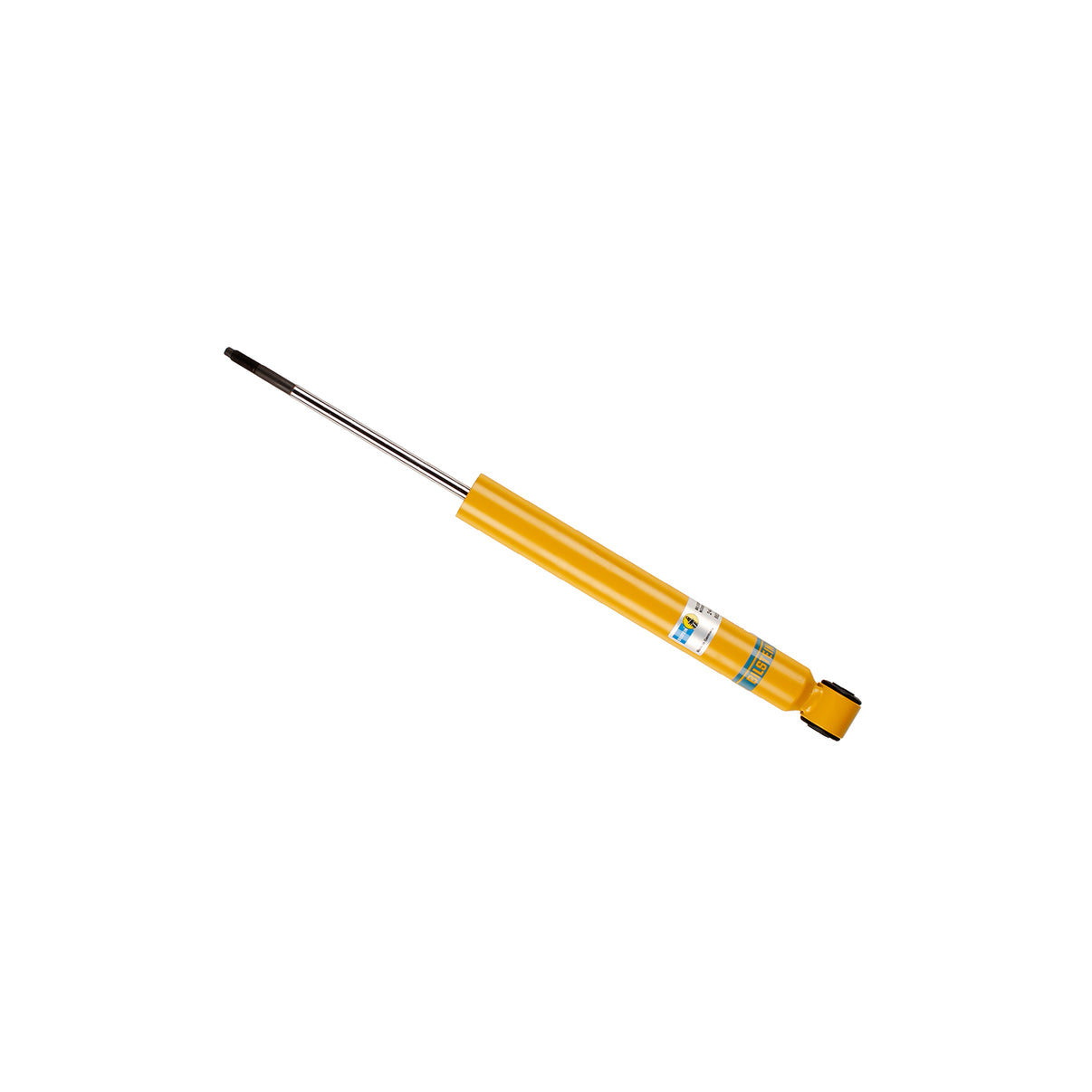

Bilstein Shock Absorbers

Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.

• Monotube design ensures consistent, fade-free performance in all conditions
• Larger working piston with deflective disc valving
• Available in steel and aluminum bodies

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860664873
• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body (Non-Coilover)
• Body Material: Steel
• Boot Included: No
• Collapsed Length (IN): 13.15
• Collapsed Length (MM): 334.0
• Compression @0.52m/s: 2000
• Extended Length (IN): 19.19
• Extended Length (MM): 487.5
• Finish: Yellow Paint
• Internal Design: Monotube
• Lower Mount Type: Eye 12mm
• PartType: Shocks / Struts
• Piston Diameter: 36mm
• Piston Type: Linear
• Position: Rear
• Rebound @0.52m/s: 2000
• Segment: Motorsports
• Series: Motorsports
• Shaft Diameter: 11mm
• Spring Hardware: N/A
• Spring Seat Included: No
• Stroke/Travel Length (IN): 6.04
• Stroke/Travel Length (mm): 153.4
• Upper Mount Type: Stem
• Valving Identifier: N/A

Extended Information:

• Country of Origin: DE
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Discontinued

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 3.4800 POUNDS
