Bilstein Shock Absorbers
$0.01 USD

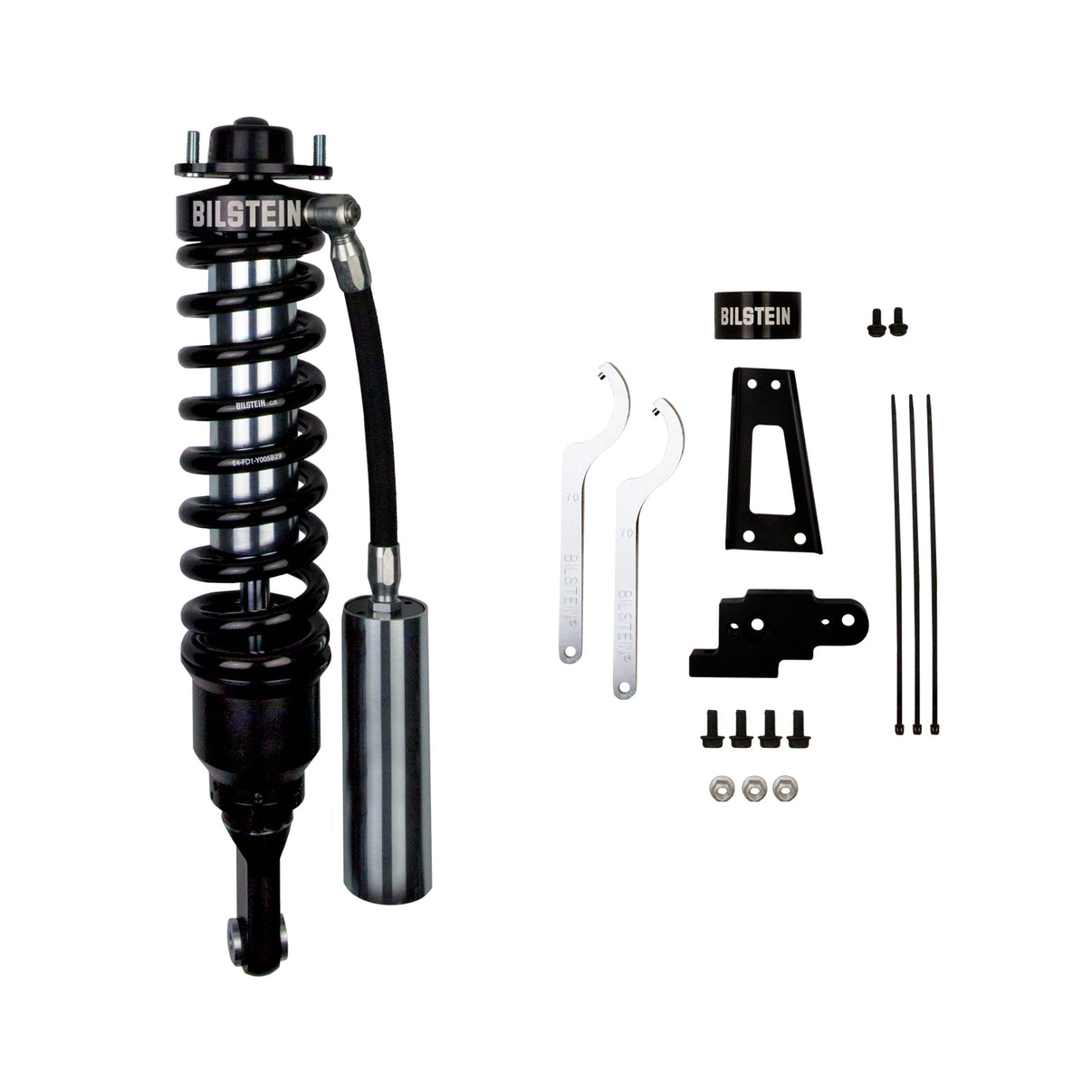

Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.
  • ZoneControl® CR: Position sensitive damping with 3 compression zones and 2 rebound zones, controlled by 3 independent pistons
  • Triple piston design delivers comfort during every day driving conditions and maximum control under large suspension inputs
  • 60mm remote reservoir for increased oil capacity and cooling

Attributes:

  • Brand Name: Bilstein
  • GTIN: 00651860797991
  • Adjustable Damping: Non-Adjustable
  • Body Design: Smooth Body (Coilover)
  • Body Material: Steel
  • Boot Included: No
  • Collapsed Length (IN): 17.99
  • Collapsed Length (MM): 456.9
  • Extended Length (IN): 22.96
  • Extended Length (MM): 583.1
  • Finish: Dampers: Zinc Plated/Springs: Black
  • Internal Design: Monotube
  • Lower Mount Type: Eye 14.1mm
  • Optional Heavy Load Springs: 53-291394, 53-291387
  • PartType: Shocks / Struts
  • Piston Diameter: 60mm
  • Reservoir: Yes
  • Segment: Light Truck
  • Series: B8 8112 (ZoneControl CR)
  • Shaft Diameter (mm): 22.0
  • Spring Seat Included: Yes
  • Upper Mount Type: Special

Extended Information:

  • Country of Origin: United States
  • Emissions : Emissions Compliance Exempt
  • Life Cycle Status: Superseded

Packing Information:

  • Quantity of Each: 1.0
  • Package UOM: EA
  • Dimension: 33.5000 x 11.8800 x 8.8800 inches
  • Weight: 34.3000 POUNDS
