Bilstein Shock Absorbers

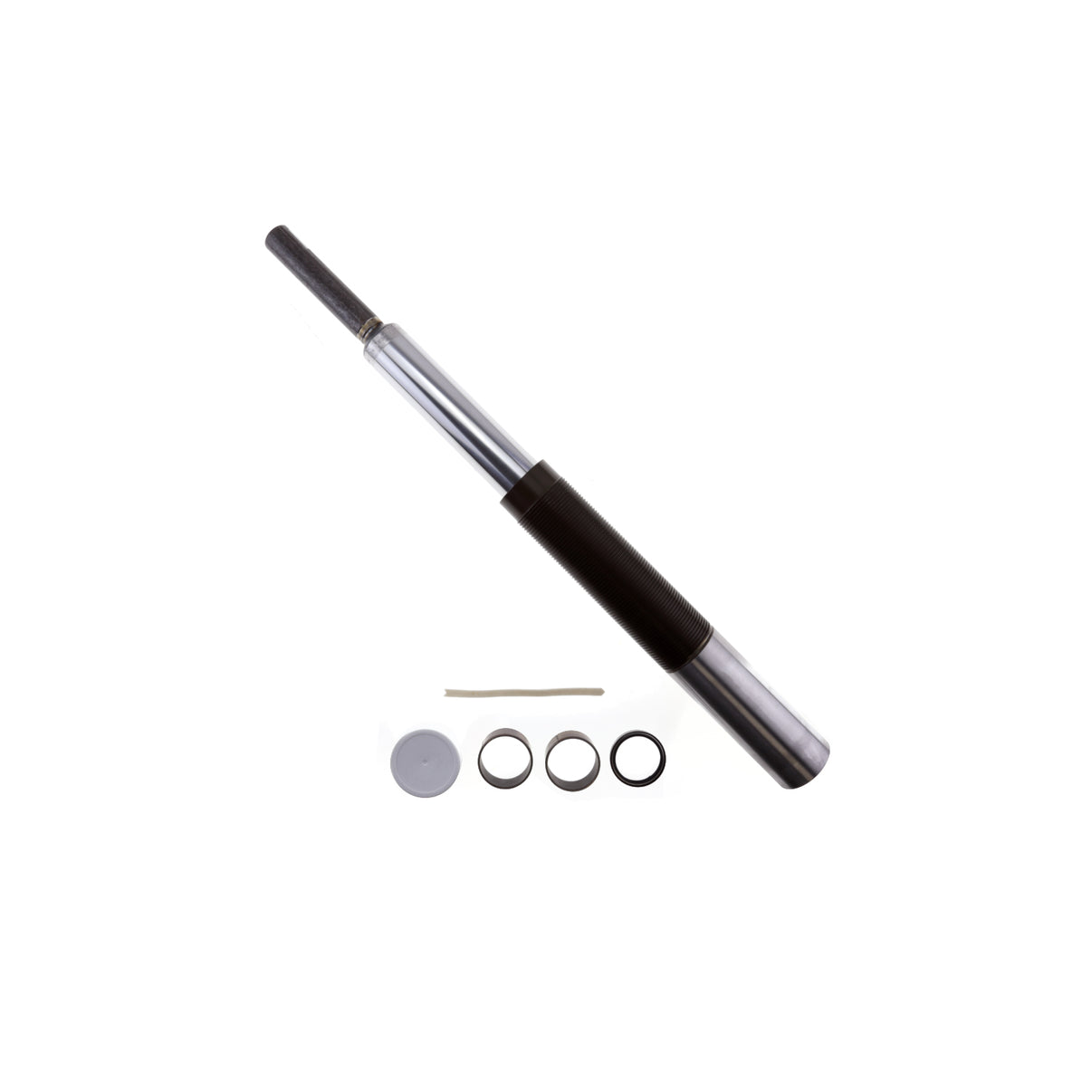

Bilstein Universal Motorsports Struts feature inverted 36mm monotube dampers that are ideal for a range of MacPherson strut style motorsports applications. The semi-finished upper mounting stem and body housing allows builders to fabricate to their unique mounting needs. The Universal Motorsports Struts are ideal for racers demanding a superior performing and versatile strut design beyond what traditional OE-style designs can provide.

• Large 46mm linear piston with precise valving profiles
• 50mm OD, hard-chromed strut insert tube for strength
• 14mm piston rod for added side-load support

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860705514
• Adjustable Damping: Non-Adjustable
• Body Design: Threaded Body (Coilover)
• Body Material: Steel
• Boot Included: No
• Collapsed Length (IN): 12.31
• Collapsed Length (MM): 312.6
• Compression @0.52m/s: 1255
• Extended Length (IN): 18.87
• Extended Length (MM): 479.4
• Finish: Olive-Drab Zinc
• Internal Design: Monotube
• Lower Mount Type: Housing
• PartType: Shocks / Struts
• Piston Diameter: 36mm
• Piston Type: Digressive
• Rebound @0.52m/s: 2790
• Segment: Motorsports
• Series: Universal Motorsports Strut
• Shaft Diameter: 14mm
• Spring Hardware: N/A
• Spring Seat Included: No
• Stroke/Travel Length (IN): 6.56
• Stroke/Travel Length (mm): 166.6
• Upper Mount Type: Stem
• Valving Identifier: 300/120

Extended Information:

• Country of Origin: US
• Emissions : 4
• Life Cycle Status: Discontinued

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 4.1500 x 4.1500 inches
• Weight: 7.6500 POUNDS
