Bilstein Shock Absorbers

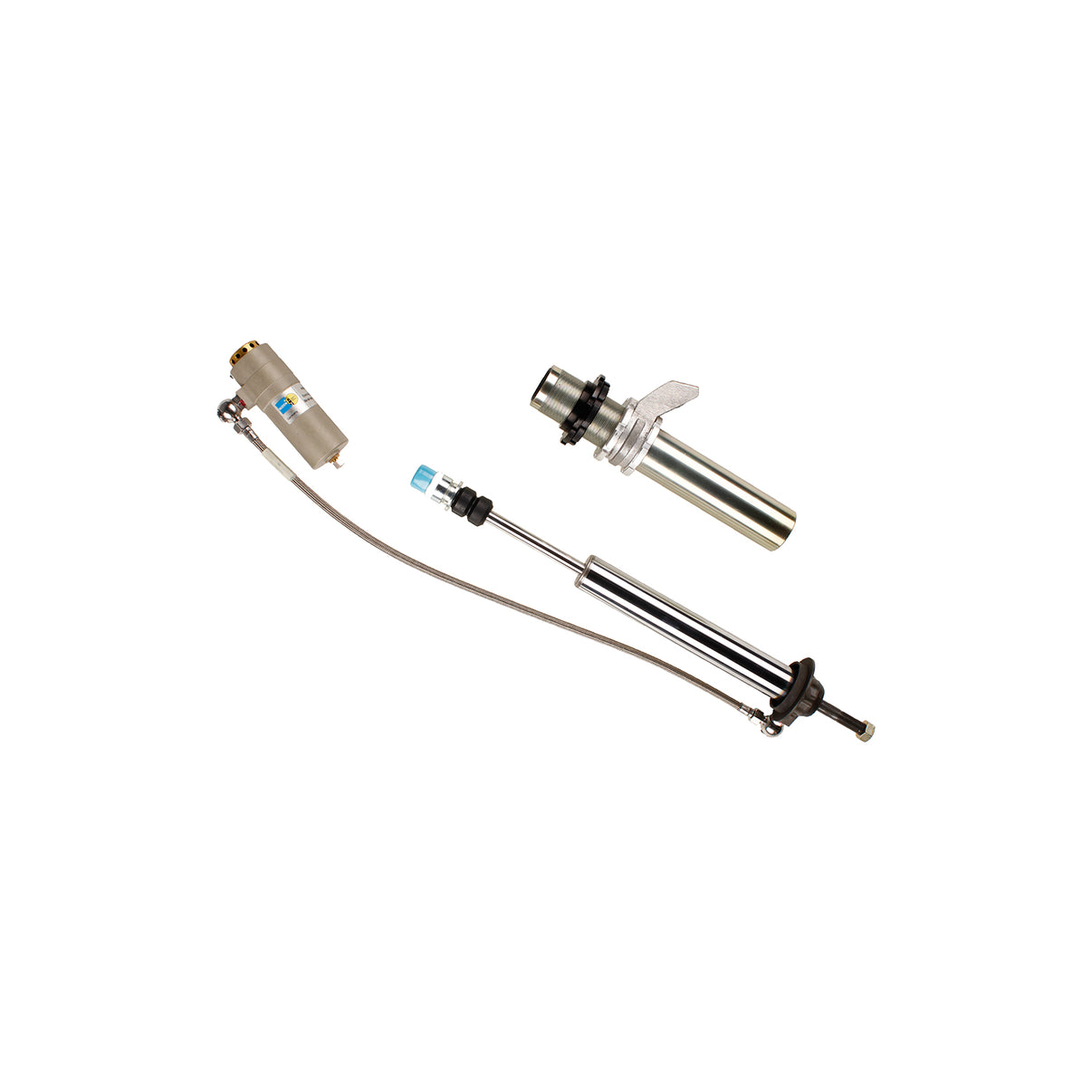

Bilstein Motorsports (Reservoir) dampers are designed as a direct fit solution for a variety of motorsports applications. These dampers feature an external reservoir with separate rebound and compression adjustments to optimize tuning and setup capabilities. Motorsport (Reservoir) dampers are ideal for racers requiring an application specific option with on-vehicle tuning characteristics.

• Monotube design ensures consistent, fade-free performance in all conditions
• Larger working piston with deflective disc valving
• Available in steel and aluminum bodies

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860525563
• Adjustable Damping: Double Adjustable – Compression and Rebound
• Body Design: Threaded Body (Coilover)
• Body Material: Steel
• Boot Included: No
• Collapsed Length (IN): 13.80
• Collapsed Length (MM): 350.5
• Extended Length (IN): 18.72
• Extended Length (MM): 475.5
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Special
• PartType: Shocks / Struts
• Piston Diameter: 36mm
• Piston Type: Linear
• Position: Front
• Segment: Motorsports
• Series: Motorsports (Reservoir)
• Shaft Diameter: 14mm
• Spring Hardware: N/A
• Spring Seat Included: No
• Stroke/Travel Length (IN): 4.92
• Stroke/Travel Length (mm): 125.0
• Upper Mount Type: Stem
• Valving Identifier: N/A

Extended Information:

• Country of Origin: Germany
• Emissions : 4
• Life Cycle Status: Discontinued

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 6.1000 x 6.1000 inches
• Weight: 11.2000 POUNDS
