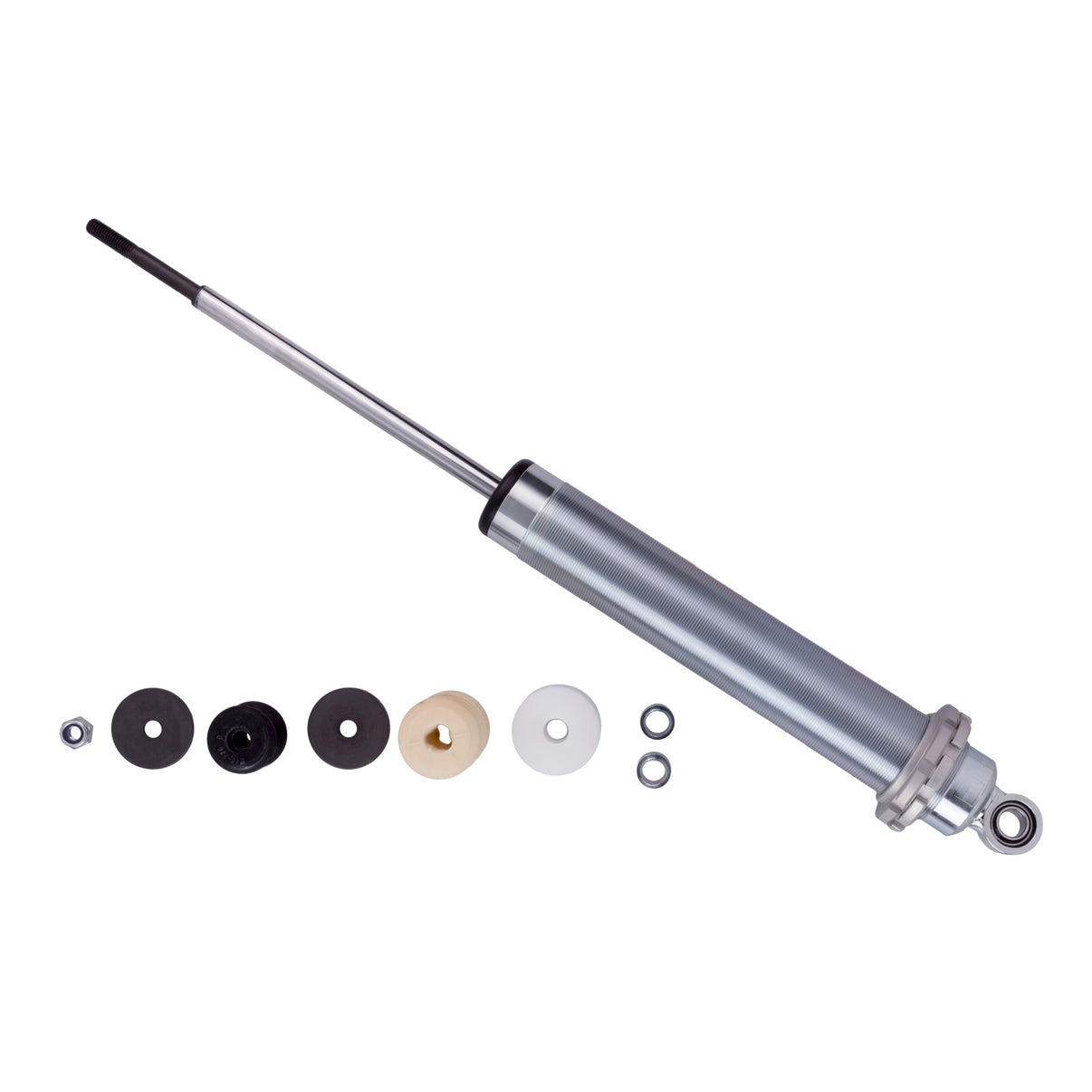

Bilstein Shock Absorbers

Bilstein Motorsports dampers are designed as a direct fit solution for a variety of motorsports applications. Each damper features monotube technology with proprietary spring steel valve discs tuned specifically to each application for superior on-track handling and control. Bilstein Motorsports dampers are ideal for racers requiring a direct fit solution with true race-proven performance.

• Monotube design ensures consistent, fade-free performance in all conditions
• Larger working piston with deflective disc valving
• Available in steel and aluminum bodies

Vehicle Specific

• Porsche 911 1965-1989, 912 1965-1969, 912 1976, 930 1978-1979

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860753911
• Adjustable Damping: Non-Adjustable
• Body Design: Threaded Body (Coilover)
• Body Material: Steel
• Boot Included: No
• Collapsed Length (IN): 17.19
• Collapsed Length (MM): 436.5
• Compression @0.52m/s: 1875
• Extended Length (IN): 21.57
• Extended Length (MM): 548.0
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: 15mm Heim
• PartType: Shocks / Struts
• Piston Diameter: 46mm
• Piston Type: Linear
• Position: Rear
• Rebound @0.52m/s: 2040
• Segment: Motorsports
• Series: Motorsports
• Shaft Diameter: 14mm
• Spring Hardware: N/A
• Spring Seat Included: Yes
• Stroke/Travel Length (IN): 4.38
• Stroke/Travel Length (mm): 111.3
• Upper Mount Type: Stem

Extended Information:

• Country of Origin: Germany
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 3.5500 x 3.5500 inches
• Weight: 5.5600 POUNDS
