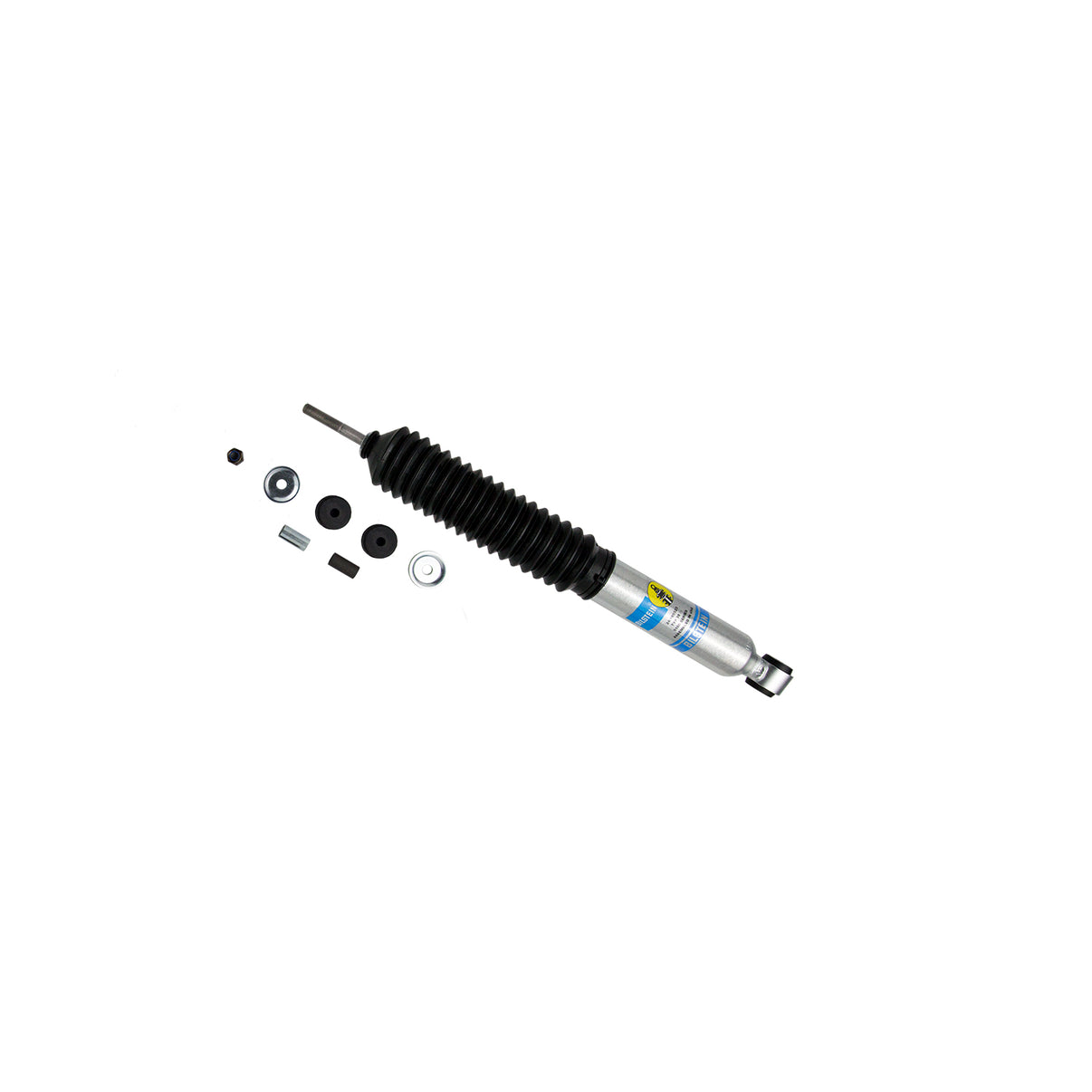

Bilstein Shock Absorbers

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

• 46mm monotube design ensures consistent, fade-free performance in all conditions
• Patented digressive valving instantly reacts to changing surface conditions
• Vehicle specific tuning

Vehicle Specific

• Ford Bronco 1980-1996, Excursion 2000-2005, F-150 1980-2003, F-150 Heritage 2004, F-250 1980-1996, F-250 HD 1997, F-250 Super Duty 1999-2016, F-350 1980-1997, F-350 Super Duty 1999-2016

Attributes:

• Brand Name: Bilstein
• GTIN: 00651860453651
• Adjustable Damping: Non-Adjustable
• Body Design: Smooth Body (Non-Coilover)
• Boot Included: Blue Straight
• Collapsed Length (IN): 12.17
• Collapsed Length (MM): 309.0
• Extended Length (IN): 18.98
• Extended Length (MM): 482.2
• Finish: Zinc Plated
• Internal Design: Monotube
• Lower Mount Type: Eye 16mm
• PartType: Shocks / Struts
• Piston Diameter: 46mm
• Reservoir: No
• Segment: Light Truck
• Series: B8 5100
• Shaft Diameter: 14mm
• Spring Seat Included: No
• Stroke/Travel Length (IN): 6.81
• Stroke/Travel Length (mm): 173.0
• Upper Mount Type: Stem

Extended Information:

• Country of Origin: MX
• Emissions : Emissions Compliance Exempt
• Life Cycle Status: Available To Order

Packing Information:

• Quantity of Each: 1.0
• Package UOM: EA
• Dimension: 26.8000 x 2.9500 x 2.9500 inches
• Weight: 3.7300 POUNDS
