TeraFlex JT: Alpine Long Arms and Long Arm Brackets (Not Included) provide complete alignment adjustability and dependability for maximum performance on JT Gladiator models with 3-6 Inch Lifts.
High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality.
MUST be used with Long Arm Bracket Kit (JT: # 1968000) - Not Included. Can be added to any existing suspension lift. Includes:

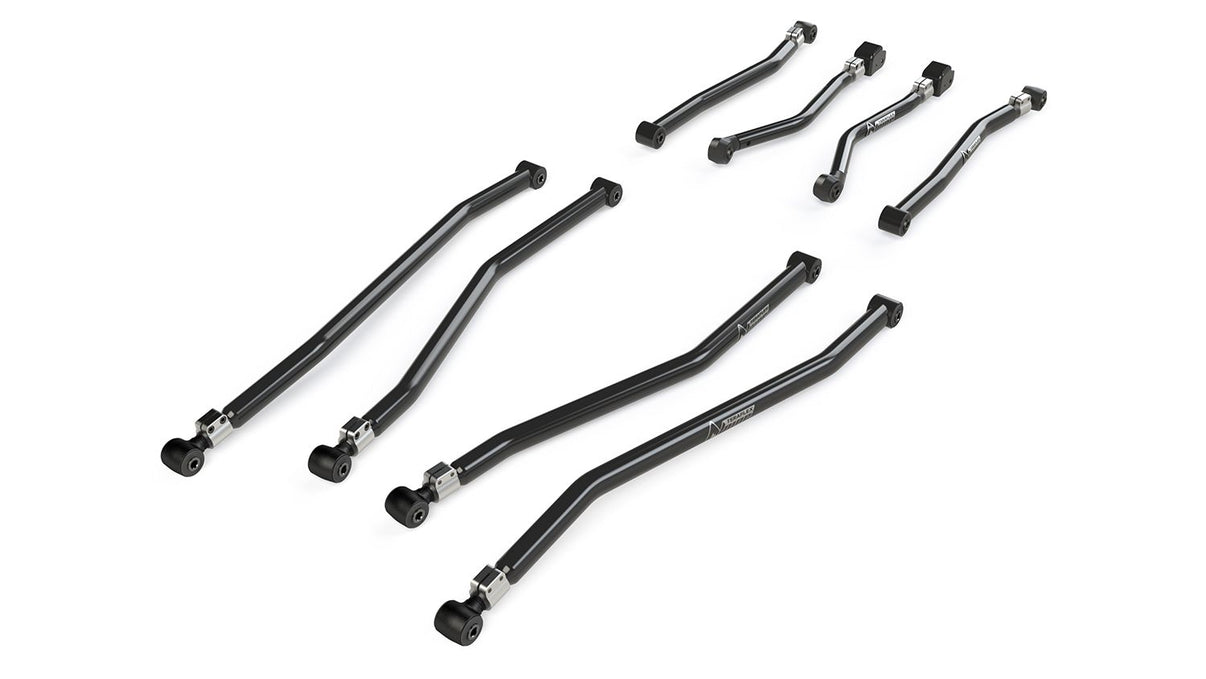

Alpine Long Arm Pairs:
Arm Pair - Front Upper (# 1316520)
Arm Pair - Front Lower (# 1316500)
Arm Pair - Rear Upper (# 1417570)
Arm Pair - Rear Lower (# 1417560)
Fitment:
JT Gladiator (pickup)
Specs:
Lift Height: 3-6 Inch
Control Arm Specs:
JL / JT: Alpine Long Arm Pair - Front Upper (# 1316520):
Tube Diameter & Wall: 42mm x 4mm
Factory Length: 20-1/4 Inch
Min. Length: 27-3/4 Inch
Max. Length: 28-7/8 Inch
Bolt - Axle: 12mm
Bolt - Frame: 14mm
Bushing - Axle: OEM
Bushing - Frame: 611012
JL / JT: Alpine Long Arm Pair - Front Lower (# 1316500):
Tube Diameter & Wall: 50mm x 5mm
Factory Length: 24 Inch
Min. Length: 30-7/8 Inch
Max. Length: 32 Inch
Bolt - Both: 16mm
Bushing - Both: 09-01-201-001
JT: Alpine Long Arm Pair - Rear Upper (# 1417570):
Tube Diameter & Wall: 50mm x 5mm
Factory Length: 16-3/8 Inch
Min. Length: 43-1/2 Inch
Max. Length: 44-5/8 Inch
Bolt - Both: 16mm
Bushing - Both: 09-01-201-001
JT: Alpine Long Arm Pair - Rear Lower (# 1417560):
