TeraFlex JT: Alpine IR Long Arms and Long Arm Brackets (Not Included) provide complete alignment adjustability and dependability for maximum performance on JT Gladiator models with 3-6 Inch Lifts.
Our innovative, maintenance-free IR Bushings provide unrestricted rotation and flex as well as excellent NVH damping to improve on- and off-road ride quality and performance. MUST be used with Long Arm Bracket Kit (JT: # 1968000) - Not Included.
Can be added to any existing suspension lift. Includes:

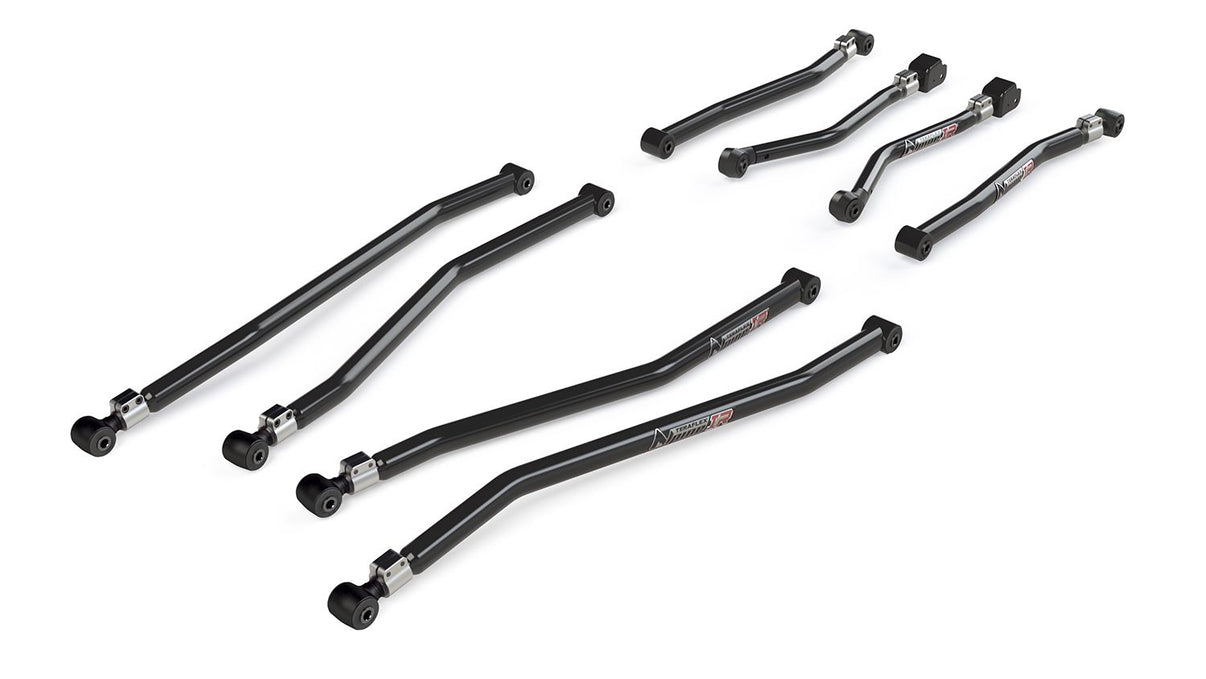

Alpine IR Long Arm Pairs:
Arm Pair - Front Upper (# 1310520)
Arm Pair - Front Lower (# 1310500)
Arm Pair - Rear Upper (# 1418550)
Arm Pair - Rear Lower (# 1418560)
Fitment:
JT Gladiator (pickup)
Specs:
Lift Height: 3-6 Inch
Control Arm Specs:
JL / JT: Alpine IR Long Arm Pair - Front Upper (# 1310520):
Tube Diameter & Wall: 42mm x 4mm
Factory Length: 20-1/4 Inch
Min. Length: 27-3/4 Inch
Max. Length: 28-7/8 Inch
Bolt - Axle: 12mm
Bolt - Frame: 14mm
IR Bushing - Axle: 611018
IR Bushing - Frame: 611016
JL / JT: Alpine IR Long Arm Pair - Front Lower (# 1310500):
Tube Diameter & Wall: 50mm x 5mm
Factory Length: 24 Inch
Min. Length: 30-7/8 Inch
Max. Length: 32 Inch
Bolt - Both: 16mm
IR Bushing - Both: 611020
JT: Alpine IR Long Arm Pair - Rear Upper (# 1418550):
Tube Diameter & Wall: 50mm x 5mm
Factory Length: 16-3/8 Inch
Min. Length: 43-1/2 Inch
Max. Length: 44-5/8 Inch
Bolt - Both: 16mm
IR Bushing - Both: 611020
JT: Alpine IR Long Arm Pair - Rear Lower (# 1418560):
