TeraFlex JL: Alpine Long Arms and Long Arm Brackets provide complete alignment adjustability and dependability for maximum performance on JL Wrangler/Unlimited models with 3-6 Inch Lifts. High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality.
CAD-engineered TeraFlex JL: Long Arm Brackets are designed for maximum strength. By streamlining the frame-end mounting points, we were able to incorporate both upper and lower mounts in each bracket thus simplifying installation while maintaining a factory appearance. Front Long Arm Suspension Crossmember provides additional strength.
Can be added to any existing suspension lift. Includes:

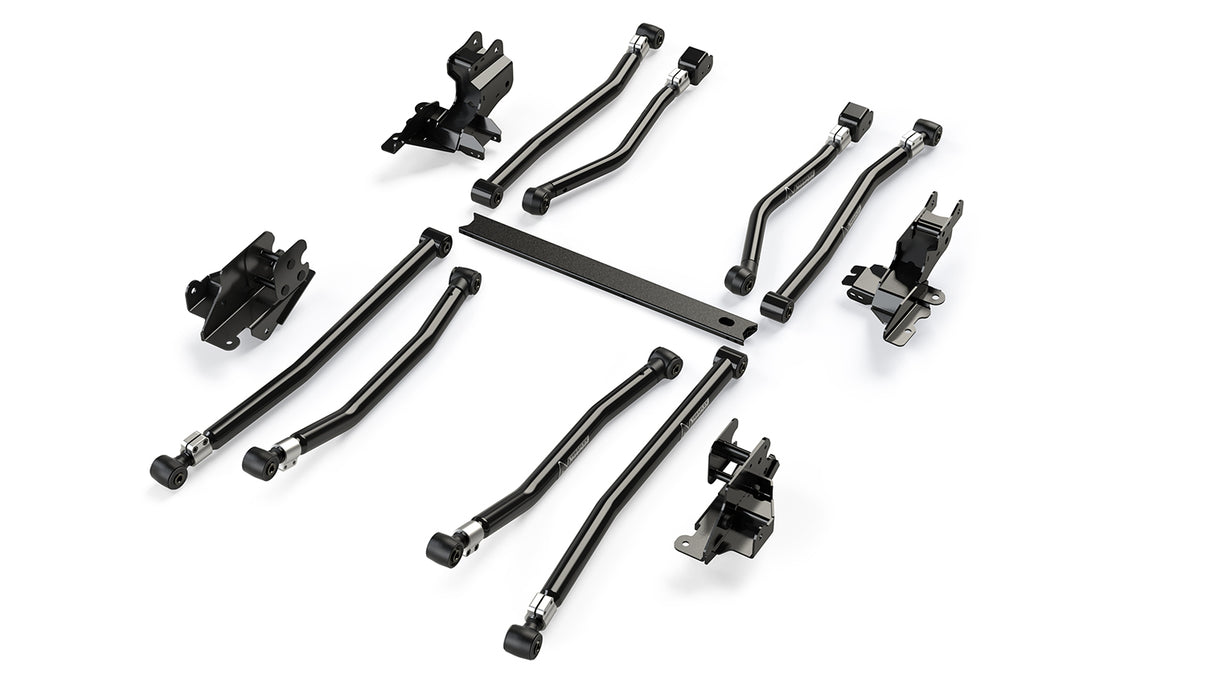

Alpine Long Arm Kit - 8-Arm (# 1316005):
Arm Pair - Front Upper (# 1316520)
Arm Pair - Front Lower (# 1316500)
Arm Pair - Rear Upper (# 1316560)
Arm Pair - Rear Lower (# 1316540)
Long Arm Bracket Kit (# 1958000):
Brackets - Front
Brackets - Rear
Suspension Crossmember - Front
All necessary hardware
Fitment:
JL Wrangler Unlimited (4-door)
Specs:
Lift Height: 3-6 Inch
Does Not fit 4-door JL Wrangler Unlimited 4xe hybrid models.
Control Arm Specs:
JL / JT: Alpine Long Arm Pair - Front Upper (# 1316520):
Tube Diameter & Wall: 42mm x 4mm
Factory Length: 20-1/4 Inch
Min. Length: 27-3/4 Inch
Max. Length: 28-7/8 Inch
Bolt - Axle: 12mm
Bolt - Frame: 14mm
Bushing - Axle: OEM
Bushing - Frame: 611012
JL / JT: Alpine Long Arm Pair - Front Lower (# 1316500):
Tube Diameter & Wall: 50mm x 5mm
Factory Length: 24 Inch
Min. Length: 30-7/8 Inch
Max. Length: 32 Inch
Bolt - Both: 16mm
Bushing - Both: 09-01-201-001
JL: Alpine Long Arm Pair - Rear Upper (# 1316560):
Tube Diameter & Wall: 50mm x 5mm
Factory Length: 17-3/8 Inch
Min. Length: 32-3/4 Inch
Max. Length: 33-3/4 Inch
Bolt - Both: 14mm
Bushing - Axle: 611012
Bushing - Frame: 611011
JL: Alpine Long Arm Pair - Rear Lower (# 1316540):
