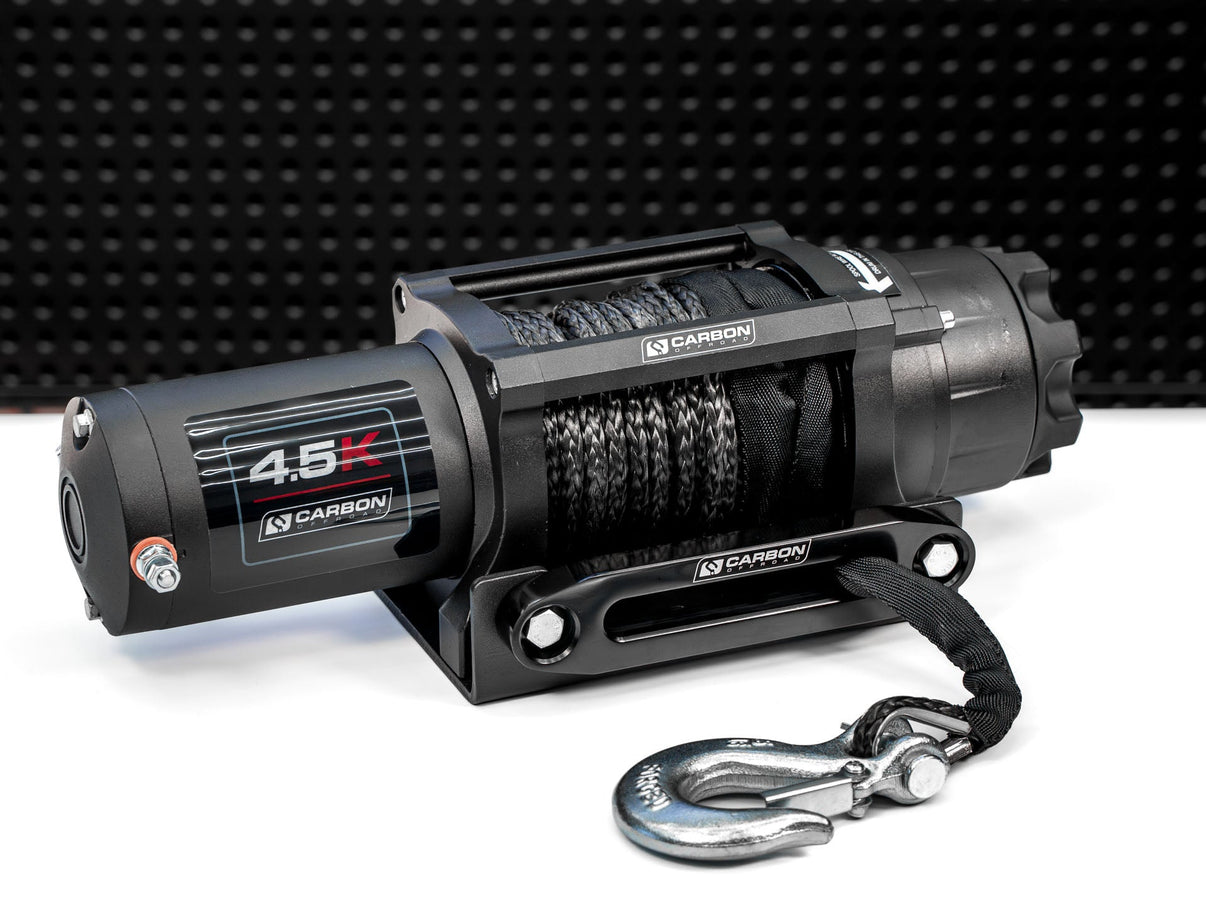

Carbon Winch 4500lb ATV Trailer with Synthetic Rope and Wireless Control

SKU: CW-45
Sale price $300.00 USD Regular price $349.00 USD
Save $49.00
Shipping calculated at checkout.

⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Compliment your order with the below
Carbon Winch 4500lb ATV Trailer with Synthetic Rope and Wireless Control
$300.00 USD

Built for heavier side-by-sides and utility vehicles, the Scout Pro 4.5K offers 4,500lb capacity and a compact, rugged build. Perfect for small car and equipment trailers, ideal for mounting in the back of a van to help load heavy equipment, and has even been used to load tinnies and open cattle gates on livestock truck trailers.

  • 4,500lb (2,041kg) Rated Pull – Extra capacity for demanding ATV/UTV use
  • 1.9HP Motor – Compact with reliable pulling power
  • 176:1 Gear Ratio – Strong, controlled operation
  • 43ft (13m) Synthetic Rope – Lightweight and durable
  • Mounting Bolt Pattern – 6.57in x 2.99in (167mm x 76mm)
  • Drum Dimensions – 1.26in x 2.87in (32mm x 73mm)
  • Winch Dimensions – 14.92in x 4.72in x 4.53in (379mm x 120mm x 115mm)
  • IP66 Rated winch and solenoid (excludes remote control and switch)
  • Wired + Wireless Remotes – Flexible control options
12V DC PERFORMANCE SPECS (first layer of drum)

Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
20.4(6.2) 31 Amps 1/4500(2040)
1000 14.2(4.3) 65Amps 2/3750(1700)
2000 10.9(3.3) 96Amps 3/3510(1595)
3000 7.7(2.4) 125Amps 4/3300(1500)
4500 4.9(1.5) 175.Amps
