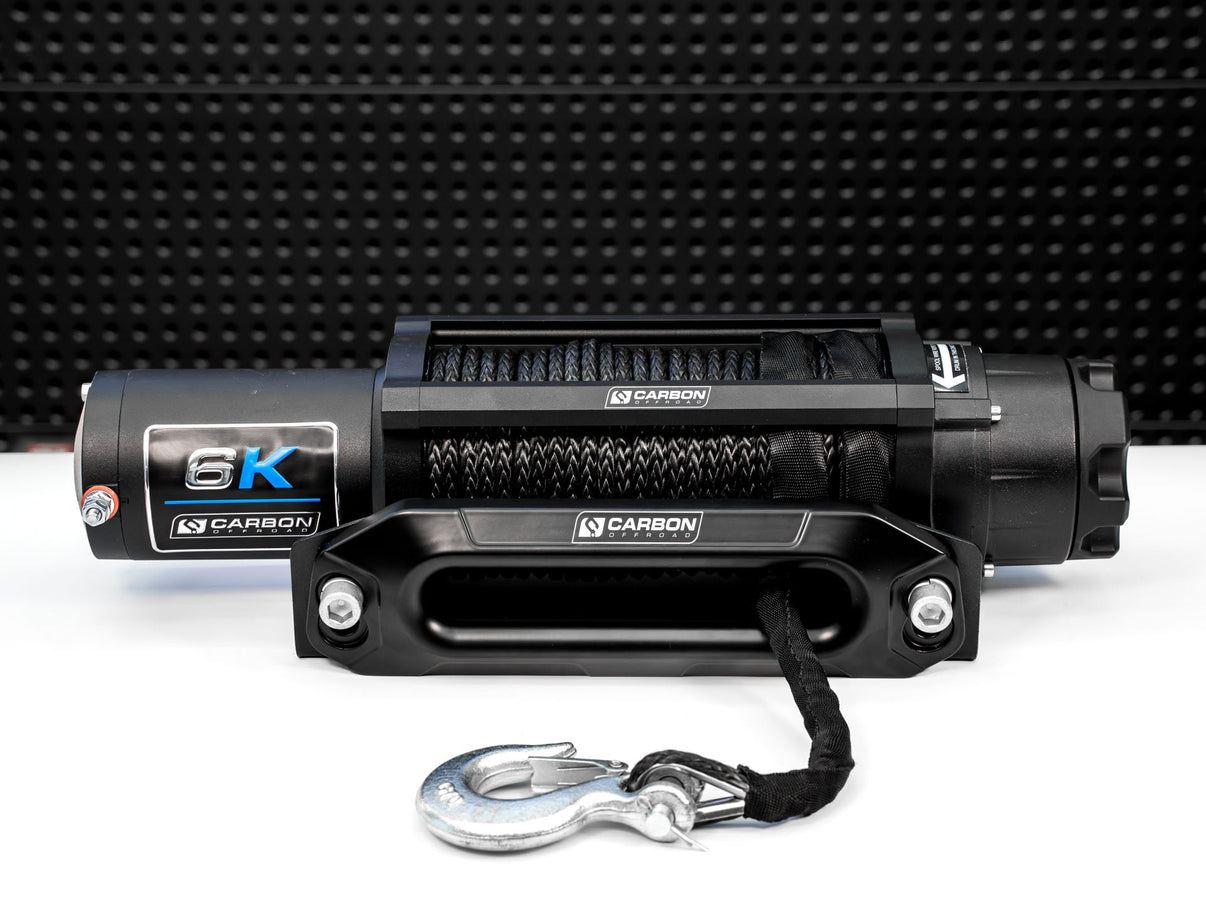

Carbon Offroad Long Drum 6K is a nimble workhorse created to reach where short-drum winches can’t.
With 6,000lbs of pulling capacity and a generous 26m synthetic rope on its extended drum, the Carbon CW-XD6L is engineered for versatile duty on ATVs, compact 4WDs, caravans, trailers and boats. Do you need to haul a tinny up a steep, low-tide ramp? Slide heavy machinery into a van from well outside the rear doors? Winch a small 4WD or camper-trailer through deep sand without adding an extension rope? If your jobs demand extra line reach in tight spaces, this is the winch you’ve been waiting for. With a sealed permanent-magnet motor, near-silent free-spooling clutch, dual wired + wireless remotes and fail-safe braking, the Long Drum 6K delivers reliable power, precise control and the rope length to keep work sites—and weekend getaways—running smoothly.
6,000lb (2,725kg) Rated Pull – Perfect for marine, trailer, and utility use
2.5HP Motor – Reliable, compact performance
147:1 Gear Ratio – Balanced strength and control
85ft (26m) Synthetic Rope – Extended reach for versatile recovery
Mounting Bolt Pattern – 10in x 2.99in (254mm x 76mm)
Drum Dimensions – 2.01in x 8.19in (51mm x 208mm)
Winch Dimensions – 18.62in x 4.92in x 4.72in (473mm x 125mm x 120mm)
IP66 Rated winch and solenoid (excludes remote control and switch)
Handlebar Mini-Rocker + Wireless Remote – Multiple control options
Please note this kit does not include the winch cradle in the pictures.
