Carbon Offroad Long Drum 6000lb ATV - Small 4X4 Winch

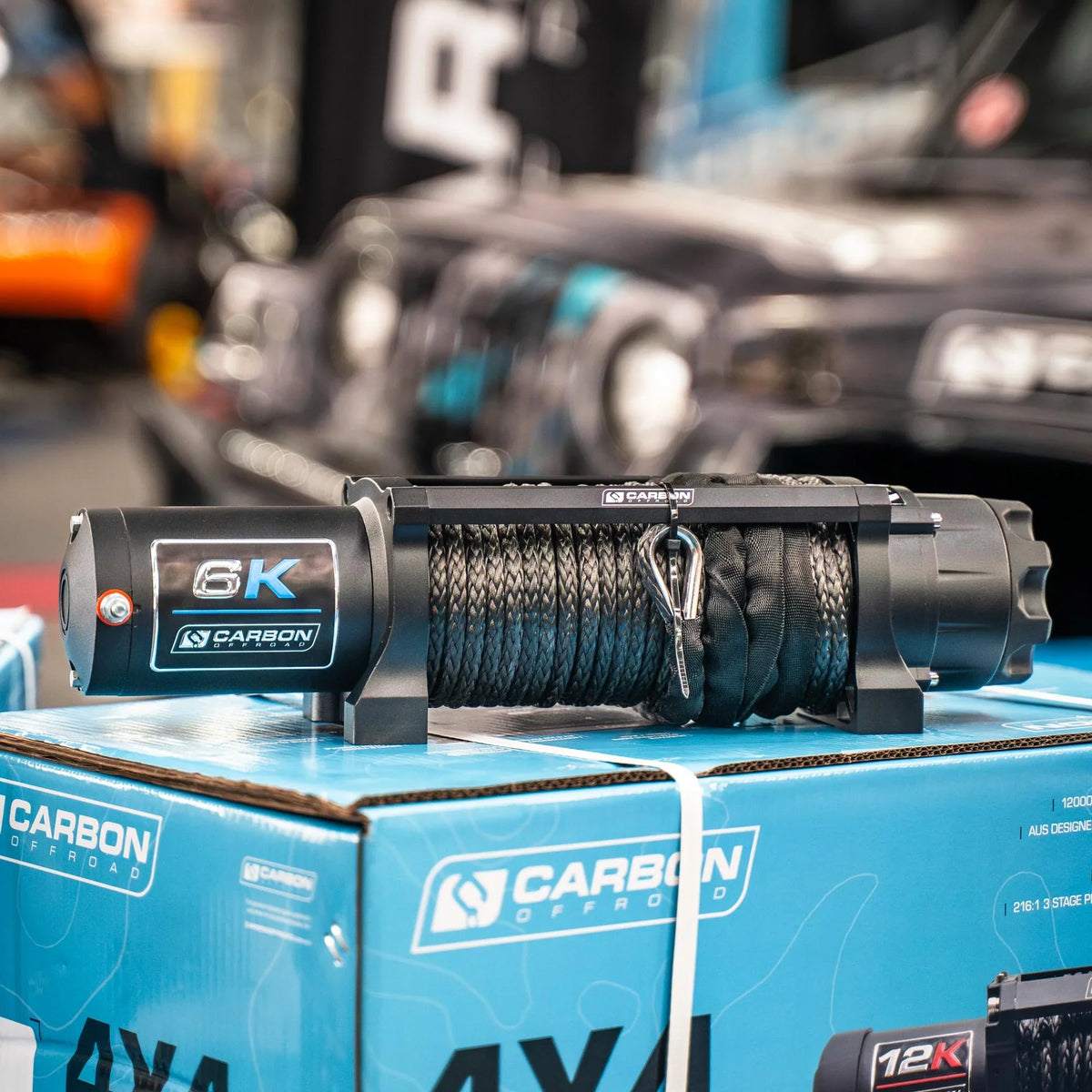

The Carbon Offroad Long Drum 6000lb ATV / Small 4x4 Winch is a nimble workhorse created to reach where short-drum winches can’t.

Overview

With 6,000 lbs of pulling capacity and a generous 26m (85.3 ft) synthetic rope on its extended drum, the Carbon CW-XD6L is engineered for versatile duty on ATVs, compact 4WDs, caravans, trailers and boats. Do you need to haul a tinny up a steep, low-tide ramp? Slide heavy machinery into a van from well outside the rear doors? Winch a small 4WD or camper-trailer through deep sand without adding an extension rope?

If your jobs demand extra line reach in tight spaces, this is the winch you’ve been waiting for. With a sealed permanent-magnet motor, near-silent free-spooling clutch, dual wired and wireless remotes, and fail-safe braking, the Long Drum 6K delivers reliable power, precise control and the rope length to keep work sites and weekend getaways running smoothly.

Features

• Extreme Durability: Sealed motor and geartrain (IP68 rated) allows for flawless operation in extreme, wet, and dusty conditions.
• Heavy-Duty Pulling Power: A 12V DC 2.5 HP permanent magnet motor provides heavy-duty torque for increased pulling power.
• Smooth Free-Spooling: Features a cam action clutch that disengages gears for near-silent, effortless free-spooling.
• Secure Control: Mechanical and dynamic automatic braking offers increased control and reliably prevents rollback.
• Extended Rope Reach: The long drum design accommodates an impressive 26m (85.3 ft) of synthetic rope, giving you more options in tricky recovery scenarios.

Contents

1 x Carbon Offroad Long Drum 6000lb Winch (CW-XD6L)
1 x Synthetic Rope (26m x 6.5mm diameter)
1 x Aluminium Hawse Fairlead
1 x Handlebar Mini-Rocker Switch
1 x Wireless Remote Control
1 x Control Box complete with cables & mounting bolts

Note: Please note this kit does not include the winch cradle shown in the pictures.



12V DC Performance Specs
