TeraFlex JT: Alpine Short Arms provide complete alignment adjustability and dependability for maximum performance on JT Gladiator models with 0-4.5 Inch Lifts. Bolts to the factory control arm mounting brackets.
High-quality, dependable, maintenance-free, factory-style bushings provide excellent NVH damping and ride quality. Can be added to any existing suspension lift. Includes:

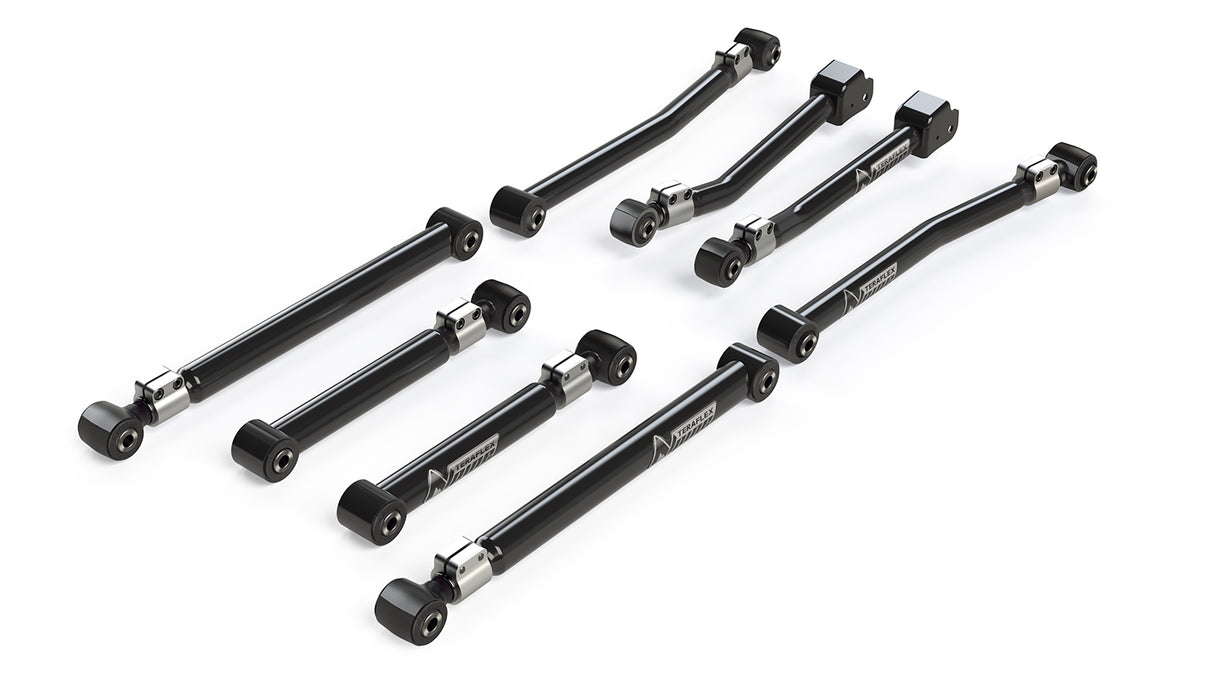

Alpine Short Arm Pairs:
Arm Pair - Front Upper (# 1416520)
Arm Pair - Front Lower (# 1416500)
Arm Pair - Rear Upper (# 1417530)
Arm Pair - Rear Lower (# 1417540)
Fitment:
JT Gladiator (pickup)
Specs:
Lift Height: 0-4.5 Inch
Control Arm Specs:
JL / JT: Alpine Short Arm Pair - Front Upper (# 1416520):
Tube Diameter & Wall: 42mm x 4mm
Factory Length: 20.185 Inch
Min. Length: 20 Inch
Max. Length: 21 Inch
Bolt - Both: 12mm
Bushing - Axle: OEM
Bushing - Frame: # 611014
JL / JT: Alpine Short Arm Pair - Front Lower (# 1416500):
Tube Diameter & Wall: 42mm x 4mm
Factory Length: 24 Inch
Min. Length: 24 Inch
Max. Length: 25-1/4 Inch
Bolt - Both: 16mm
Bushing - Both: # 09-01-201-001
JT: Alpine Short Arm Kit - Rear Upper (# 1417530):
Tube Diameter & Wall: 42mm x 4mm
Factory Length: 16-3/8 Inch
Min. Length: 16-1/8 Inch
Max. Length: 17-3/8 Inch
Bolt - Both: 16mm
Bushing - Both: # 09-01-201-001
JT: Alpine Short Arm Kit - Rear Lower (# 1417540):
