20-Up Jeep Gladiator 3.5 Inch Alpine CT3 Short Arm Extended-Travel Suspension System No Shocks TeraFlex

TeraFlex Alpine CT (Cross-Trail) Suspension Systems build on our Sport ST (Street & Trail) Suspension Systems.
A 3.5 Inch suspension system opens a new world of tire sizes and off-road possibilities. If you have that do it all attitude, the 3.5 Inch Alpine CT3 Short Arm Extended-

Travel Suspension System will make it happen. Our Alpine Short Arms, Front HD Forged Adjustable Track Bar, and Front and Rear Track Bar Brackets combined with our extended-travel components provide maximum tunability and flawless performance for years to come.

Adjustable Alpine Short Arms balance front caster angle and pinion angles as well as optimize rear pinion angles, anti-squat geometry, and tire position on vehicles with 0-4.5 Inch Lifts.

The Front HD Forged Adjustable Track Bar and Track Bar Brackets improve steering response, centers the axle to optimize vehicle roll center, and reduces body roll for unsurpassed handling.

Extended-Travel Suspension Systems include carefully selected components to safely provide 16 Inch of rear suspension travel.
This results in improved suspension geometry and relaxed control arm angles for a superior ride quality and performance regardless of terrain.

These systems restore front and rear roll axis angles to minimize brake dive and acceleration squat. TeraFlex suspension systems provide reduced noise, vibration, and harshness (NVH).

Alpine CT Suspension Systems are engineered for hardcore Jeeping without sacrificing weekday ride comfort!

Does Not include shocks. We recommend Falcon Performance Shocks. Falcon shock absorbers and TeraFlex lift coil springs have been engineered together to improve both compression and rebound for optimal vehicle stability. Falcon shock absorbers and steering stabilizers available separately.

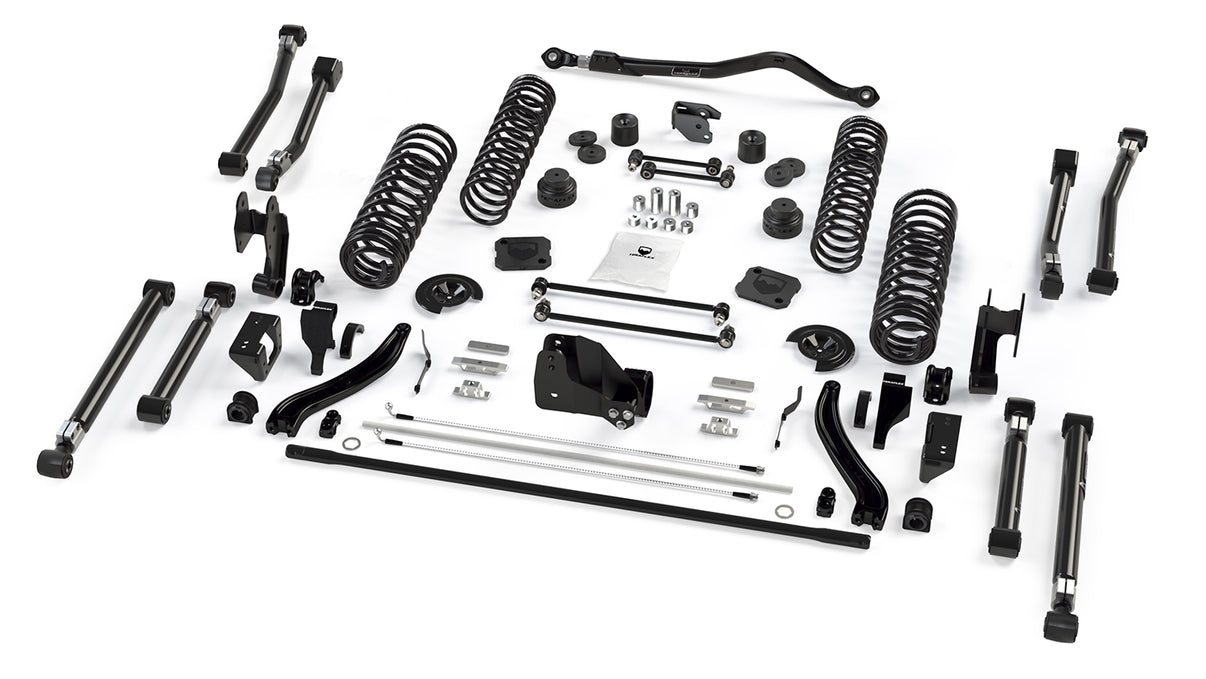

Includes:

• 3.5 Inch Lift Coil Spring Pair (Front: # 1873000) (Rear: # 1873100)
• Alpine Short Arm Kit - 8-Arm (0-4.5 Inch Lift) (# 1417500)
• Extended-Travel Axle Bracket Kit - Rear Upper Control Arms (1 Inch+ Lift) (# 1938225)
• HD Forged Adjustable Track Bar - Front (0-6 Inch Lift) (# 1753420)
• Track Bar Bracket Kit (Front Lower 2.5-3.5 Inch Lift: # 1953250) (Rear Lower 0-6.5 Inch Lift: # 1963600)
• Progressive Bump Stop Kit - Front & Rear (0-4.5 Inch Lift) (# 1969200)
• 2 Inch Bump Stop Strike Pad Extension - Front Lower (# 12-01-109-200) x 2
• 0.5 Inch Bump Stop Strike Pad Shim - Front Lower (# 12-02-109-050) x 4
• 1.5 Inch Bump Stop Extension Kit - Rear Upper (# 1969300) x 2
• 0.5 Inch Bump Stop Shim Kit - Rear Upper (# 1969400)
• 0.5 Inch Bump Stop Strike Pad Shim Kit - Rear Lower (# 1969100)
• Front Sway Bar Quick Disconnect Kit (0-4.5 Inch Lift) (# 1764000)
• Forged ST Sway Bar Kit - Rear (2 Inch+ Lift) (# 1774700)
• 1.5 Inch Driveshaft Lowering Kit - Rear (# 4801000)
• Extended-Travel Accessory Kit - Rear (3.5 Inch+ Lift) (# 4834100)
• Coil Spring Retainer Kit - Rear Upper & Rear Lower (# 4954000)
• Brake Line Anchor Kit (Front: # 1101255) (Rear: # 1101455)
• All necessary hardware
• And more

Fitment Vehicle(s):

• JT Gladiator (pickup)

Specs:

• Lift Height: 3.5 Inch

Max Tire Diameter:

• Sport/Overland Fenders: 33 Inch (w/ 2 Inch front and 1 Inch rear bump stops/strike pad extensions/shims)
• Sport/Overland Fenders: 35 Inch (w/ 3 Inch front and 2.5 Inch rear bump stops/strike pad extensions/shims)
• Rubicon/Mojave Fenders: 35 Inch (w/ 2 Inch front and 1 Inch rear bump stops/strike pad extensions/shims)
• Rubicon/Mojave Fenders: 37 Inch (w/ 2 Inch front and 2.5 Inch rear bump stops/strike pad extensions/shims)
