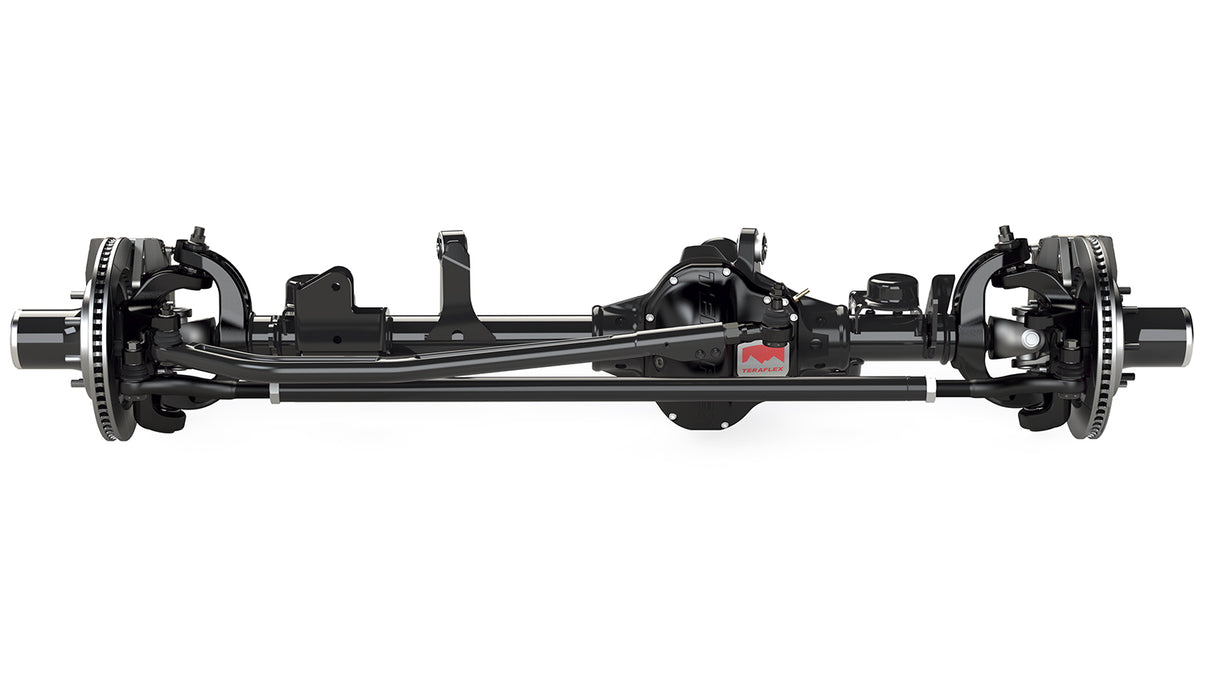

The complete Tera60 HD Front Axle Assembly w/ Locking Hub provides a choice of pre-installed Super 60 ring and pinion gears, ARB air locker, SlimLock Hub Kit, Spicer HD Ball Joints as well as inner and outer axle shafts, knuckle assembly, brakes, and sensors.
TeraFlex HD Front Axle Housings are perfect for replacing bent, broken, or damaged axles in JL Wrangler/Unlimited and JT Gladiator vehicles including Rubicon models. Can also be used as a direct bolt-on upgrade for Jeep owners looking to beef up the stock axles' weak areas.
Tera60 HD Front Axle Housings are the ultimate upgrade for JL and JT models requiring maximum suspension up travel and compression. Compatible with all Super 60 gear ratios for extreme duty applications requiring additional ring and pinion strength.
Our heavy-duty axle housings feature smooth profile surfaces, axle tubes, all necessary mount brackets, control arm bushings, forged inner knuckles, and more!
Features/Benefits::
Sealed SlimLock Locking Hub Assembly for long-term maintenance-free dependability
3.25 inch O.D. x 0.375 inch wall DOM axle tube for superior strength vs. weight
70 inch WMS-WMS and 8x6.5 inch wheel bolt pattern
Fixed spindle mount hub assembly
Tera60 specific high-pinion front axle housing design
Includes 1350 series pinion yoke
35-spline inner axle shafts and outer stub shafts
Outer pinion bearing pocket features a renewable oil reservoir that sends cool oil to the pinion bearing
Oversized outer pinion bearing handles increased torque and high-load conditions
High-capacity housing holds maximum amount of oil
Asymmetric housing design for extra-long tube side strength
Pre-installed inner axle seals
HD forged inner knuckles w/ greater upper and lower section strength
Ductile cast iron housing w/ increased rib gussets
HD ductile iron differential cover
Smooth radius bottom design to glide over rocks and obstacles
Integrated lower control arm skid plates
High-flow oil passages
Bottom oil drain hole for simple fluid changes
Reinforced front track bar mount (ties into spring pad) for greater strength
UV protected triple-stage powder coat for corrosion resistance
1/4 inch-thick CNC laser cut axle brackets for extreme strength
Integrating the front upper control arm mounts into the housing increases up travel an additional 2 inch compared to other aftermarket Dana 60 axles
Pre-installed upper control arm bushings
Proper pinion angle and raised track bar bracket for lifted JL/JT applications
Pre-tapped hole on spring perch for bump stop extensions
Pre-drilled holes for limit straps and lower spring retainers
Retains all JL/JT ESP, ABS, and speedometer sensor capability
100 percent engineered, designed, and built in the USA w/ new components
1-Year/Unlimited Mileage Warranty
Includes:
ARB Air Locker
Spicer Super 60 ring and pinion
Spicer bearings and install kits
35-spline inner axle shafts
35-spline outer stub shafts
Spicer HD Ball Joints
1350 series pinion yoke
Dana 60: SlimLock Hub Kit (Part Number 3449350)
Delta Brake Kit - Front (Part Number 4403481)
HD Chromoly Tie Rod Kit (Part Number 1863910)
HD Differential Cover Kit
Fits:
JL Wrangler (2-door)
JL Wrangler Unlimited (4-door)
JT Gladiator (pickup)
0-6 inch Lift
Specs:
WMS-WMS: 70 inch
Axle Tube: 3.25 inch x 0.375 inch
Wheel Bolt Pattern: 8x6.5 inch
Gear Ratio: 4.30
Product Notes:
Optimize your setup by upgrading your steering system with our heavy-duty steering components. The factory steering system may also be reused.
HD Forged Drag Link Kit (0-6 inch Lift) (Part Number 1863920)
Requires adjustable control arms for caster angle adjustments
