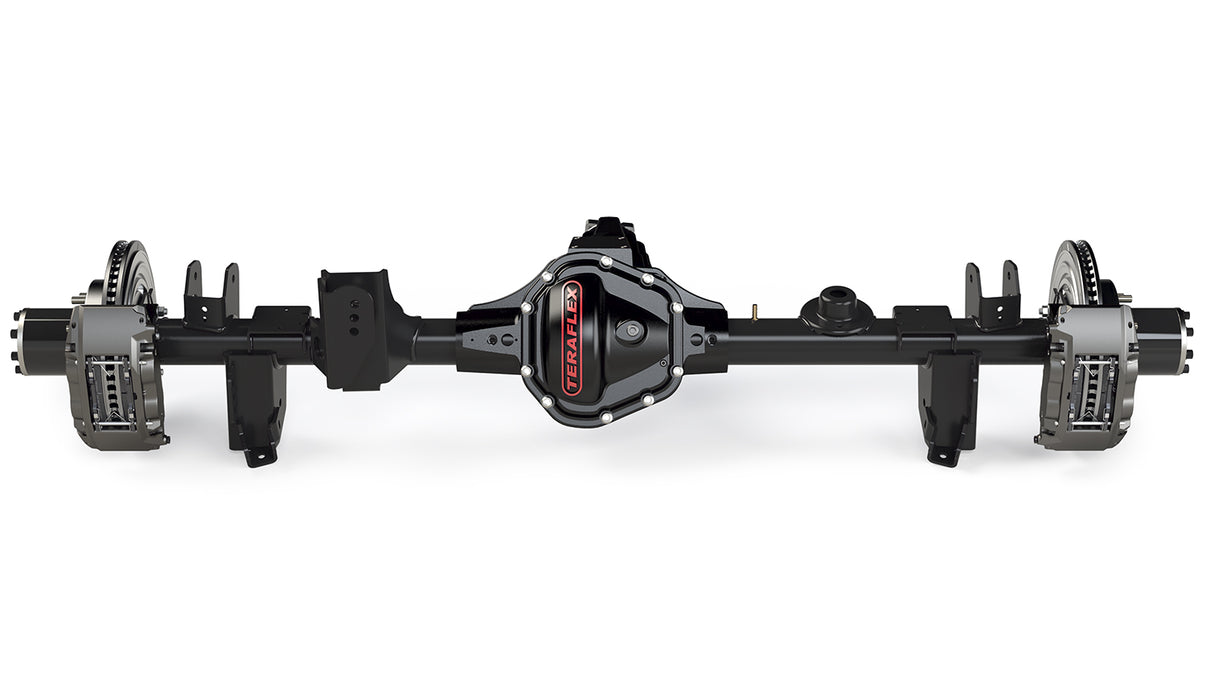

The complete Tera CRD60 HD Rear Axle Assembly w/ Full-Float provides a choice of pre-installed Super 60 ring and pinion gears, ARB air locker, and full-float outer axles as well as inner axle shafts, and sensors.
TeraFlex Tera CRD60 HD Rear Axle Housings are perfect for replacing bent, broken, or damaged axles in JL Wrangler/Unlimited vehicles including Rubicon models. Can also be used as a direct bolt-on upgrade for Jeep owners looking to beef up the stock axles' weak areas.
The exclusive Constant Radius Design (CRD) provides high ground clearance that is unaffected by pinion angle adjustments. Compatible with all Super 60 gear ratios for extreme duty applications requiring additional ring and pinion strength.
Our heavy-duty axle housings feature smooth profile surfaces, axle tubes, all necessary mount brackets, control arm bushings, and more!
Features/Benefits::
Extreme duty full-float design
3.25 inch O.D. x 0.375 inch wall DOM axle tube for superior strength vs. weight
70 inch WMS-WMS and 8x6.5 inch wheel bolt pattern
Fixed spindle mount hub assembly
Tera CRD60 specific high-pinion rear axle housing design
Includes 1350 series pinion yoke
35-spline inner axle shafts and outer stub shafts
HD bearing caps increase rigidity and reduce ring and pinion distortion
Constant Radius Design (CRD) provides maximum ground clearance regardless of pinion angle
Built-in skimmer cuts ring gear oil halo and forces it into the pinion bearings
Outer pinion bearing pocket features a renewable oil reservoir that sends cool oil to the pinion bearing
Oversized outer pinion bearing handles increased torque and high-load conditions
High-capacity housing holds maximum amount of oil
Pre-installed inner axle seals
Ductile cast iron housing w/ increased rib gussets
HD ductile iron differential cover w/ increased cover mounting area
Integrated lower control arm skid plates
High-flow oil passages
Bottom oil drain hole for simple fluid changes
Reinforced rear track bar mount w/ multiple mounting locations
UV protected triple-stage powder coat for corrosion resistance
1/4 inch-thick CNC laser cut axle brackets for extreme strength
Pre-installed upper control arm bushings
Proper pinion angle and raised track bar bracket for lifted JL applications
Pre-tapped hole on spring perch for bump stop extensions
Pre-drilled holes for limit straps and lower spring retainers
Retains all JL ESP, ABS, and speedometer sensor capability
100 percent engineered, designed, and built in the USA w/ new components
1-Year/Unlimited Mileage Warranty
Includes:
ARB Air Locker
Spicer Super 60 ring and pinion
Spicer bearings and install kits
Full-Float axles
35-spline inner axle shafts
35-spline outer stub shafts
1350 series pinion yoke
Delta Brake Kit - Rear
Dana 60/Tera CRD60: Differential Cover Kit (Part Number 3990660)
Fits:
JL Wrangler (2-door)
JL Wrangler Unlimited (4-door)
0-6 inch Lift
Specs:
WMS-WMS: 70 inch
Axle Tube: 3.25 inch x 0.375 inch
Wheel Bolt Pattern: 8x6.5 inch
Gear Ratio: 5.38
Notes:
Optimize your setup by upgrading your steering system with our heavy-duty steering components. The factory steering system may also be reused.
HD Forged Drag Link Kit (0-6 inch Lift) (Part Number 1863920).
HD Chromoly Tie Rod Kit (0-6 inch Lift) (Part Number 1863910) - included in our Tera60 HD Front Axle Assemblies.
Requires adjustable control arms for caster angle adjustments.
