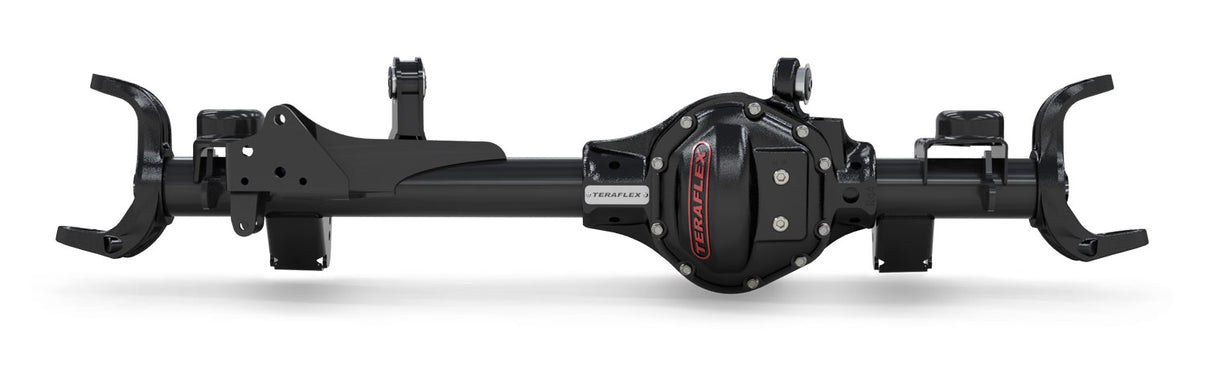

TeraFlex JK Front Tera44 Replacement Axle Housings include a heavy-duty housing with axle tubes, bracketry, and forged inner knuckles. Pre-installed inner seals and upper control arm bushings make the upgrade seamless.
Simply transfer your existing internal components (differential, ring and pinion, and axle shafts), outer components (knuckle assembly and ball joints), axle assembly, unit bearings, brakes and sensors to the new housing.
TeraFlex heavy-duty JK Front Tera44 Replacement Axle Housings are perfect for replacing bent, broken, or damaged front axles in JK Wrangler and Rubicon vehicles. Can also be used as a direct bolt-on upgrade for JK Wrangler owners looking to beef up the front axle's weak areas. Details:
SKU: 3544053
Lift Height: 4-6 Inch
Width: 67 Inches WMS-WMS (stock)
Axle Tube: 3.25 Inch x 0.5 Inch
Fits:
JK Wrangler (2-door) - front
JKU Wrangler Unlimited (4-door) - front
Features and Benifits:
3.25 inch O.D. x 0.5 inch wall axle tube increases strength to resist bending and torsion w/ minimal weight increase
Pre-installed inner axle seals
Forged HD inner knuckles w/ greater upper and lower section strength
Ductile cast iron housing w/ increased rib gussets
HD ductile iron differential cover
Asymmetric housing design, for extra-long tube side strength
Smooth radius bottom design to glide over rocks and obstacles
Integrated lower flexarm skid plates
Bottom oil drain hole for simple fluid changes
Premium UV protected triple-stage powdercoat process for superior corrosion resistance
1/4 inch thick CNC laser cut axle brackets for extreme strength
Integrated factory location upper control arm mount
Pre-installed upper control arm bushings
Reinforced front track bar mount (ties into spring pad) for greater strength
Proper pinion angle for Lifted JK applications
Pre-tapped hole on spring perch for bump stop extensions
Pre-drilled holes for limit straps and lower spring retainers
Retains all JK ESP, ABS, and speedometer sensor capability
Compatible with factory JK Rubicon locker
100 percent engineered, designed, and built in the USA
100 percent new components
1-Year / Unlimited Mileage Warranty
Notes:
The R44 axle works with factory axle shafts and Rubicon locker (P/N 68017176AA) or (OX D44-JKR-30) locker. The ARB RD157 locker or the OX D44-JKR-30 locker can be used with new 35 spline axle shafts.
Install Time: 8 Hours (includes gear setup)
This is a very heavy item and must be shipped by freight truck
